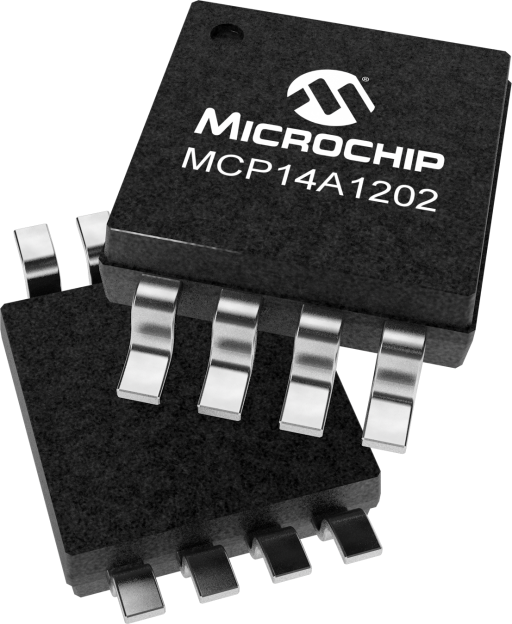

Microchip MCP14A1202-E/SN
Microchip MCP14A1202-E/SNMicrochip MCP14A1202-E/SNMicrochip MCP14A1202-E/SN

Microchip MCP14A1202-E/SN

Manufacturer No:

MCP14A1202-E/SN

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

12 A MOSFET Gate Driver with Low Input Threshold and Enable

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP14A1202-E/SN information

Microchip MCP14A1202-E/SN technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP14A1202-E/SN.

  • Type
  • Parameter
  • MOSFET Driver Type
  • Low Side
  • Configuration
  • Non-Inverting
  • Maximum Supply Voltage (V)
  • 18
  • Peak Source Output (A)
  • 12
  • Peak Sink Output (A)
  • 12
  • Source Resistance (Ω)
  • 1.5
  • Sink Resistance (Ω)
  • 1.2
  • Propagation Delay t<sub>D1</sub> (ns)
  • 28
  • Propagation Delay t<sub>D2</sub> (ns)
  • 28
  • Rise Time (t<sub>R</sub>, ns)
  • 25
  • Fall Time (t<sub>F</sub>, ns)
  • 25
  • Capacitive Load Drive
  • 15,000 pF in 25 ns

Download datasheets and manufacturer documentation for Microchip MCP14A1202-E/SN.

Data Sheets:

Application Notes:

The MCP14A1201/2 devices are high-speed MOSFET drivers that are capable of providing up to 12 A of peak current while operating from a single 4.5 V to 18 V supply. There are two output configurations available; inverting (MCP14A1201) and noninverting (MCP14A1202). These devices feature low shoot-through current, fast rise and fall times, and matched propagation delays which make them ideal for high speed switching frequency applications.

The MCP14A1201/2 family of devices offers enhanced control with Enable functionality. The active-high Enable pin can be driven low to drive the output of the MCP14A1201/2 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pin floating for standard operation.

These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 2 kV (HBM) and 200 V (MM).



  • High Peak Output Current: 12 A (typical)
  • Wide Operating Range: 4.5 V to 18 V
  • Low Shoot-Through/Cross-Conduction Current in Output Stage
  • High Capacitive Load Drive Capability: 15,000 pF in 25 ns (typical)
  • Short Delay Times: 28 ns (D1)28 ns (D2) (typical)
  • Low Supply Current: 360 µA (typical)
  • Low Voltage Threshold Input and Enable with Hysteresis
  • Latch-Up Protected: Withstands 0.5 A Reverse Current

    • User Guide
