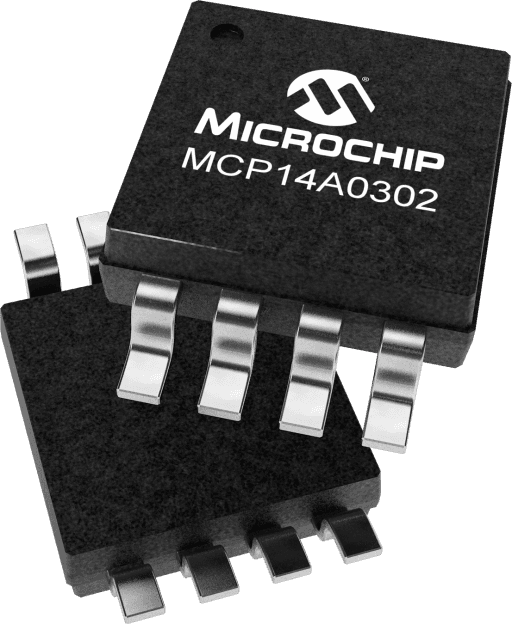

Microchip MCP14A0302T-E/KBA
Manufacturer No:
MCP14A0302T-E/KBA
Manufacturer:
Package:
8-WFDFN Exposed Pad
Description:
3 A MOSFET Gate Driver with Low Threshold Input and Enable
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MCP14A0302T-E/KBA Information
Microchip MCP14A0302T-E/KBA technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP14A0302T-E/KBA.
- Type
- Parameter
- Capacitive Load Drive
- 1000 pF in 13.0 ns
- MOSFET Driver Type
- Low Side
- Maximum Supply Voltage V (volt)
- 18
- Peak Sink Current A (ampere)
- 3
- Peak Source Current A (ampere)
- 3
- Propagation Delay tD1 ns (nanosecond)
- 15
- Propagation Delay tD2 ns (nanosecond)
- 18
- Sink Resistance Ω (ohm)
- 1.5
- Source Resistance Ω (ohm)
- 2.2
- Fall Time tF ns (nanosecond)
- 12
- Type
- Parameter
- Rise Time tR ns (nanosecond)
- 13
Download datasheets and manufacturer documentation for Microchip MCP14A0302T-E/KBA.
Data Sheets:
Application Notes:
The MCP14A0301/2 devices are high-speed MOSFET drivers that are capable of providing up to 3 A of peak current while operating from a single 4.5 V to 18 V supply. The inverting (MCP14A0301) or non-inverting (MCP14A0302) single channel output is directly controlled from either TTL or CMOS (2 V to 18 V) logic. These devices also feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications.
The MCP14A0301/2 family of devices offer enhanced control with Enable functionality. The active-high Enable pin can be driven low to drive the output of the MCP14A0301/2 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pin floating for standard operation.
Additionally, the MCP14A0301/2 devices feature separate ground pins (AGND and GND), allowing greater noise isolation between the level-sensitive Input/Enable pins and the fast, high-current transitions of the push-pull output stage.
These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 1.75 kV (HBM) and 200 V (MM).
