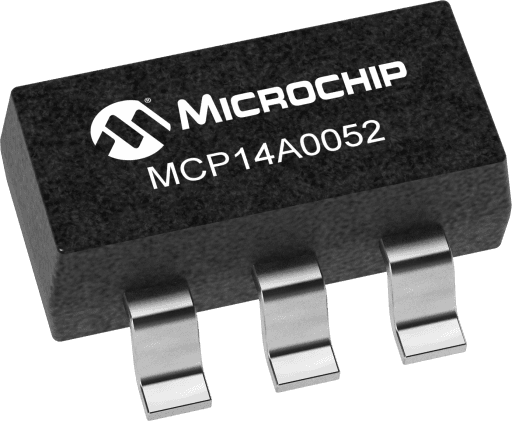

Microchip MCP14A0052T-E/CH
Microchip MCP14A0052T-E/CHMicrochip MCP14A0052T-E/CH

Microchip MCP14A0052T-E/CH

Manufacturer No:

MCP14A0052T-E/CH

Manufacturer:

Microchip

Package:

SOT-23-6

Description:

0.5 A MOSFET Gate driver

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP14A0052T-E/CH information

Microchip MCP14A0052T-E/CH technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP14A0052T-E/CH.

  • Type
  • Parameter
  • MOSFET Driver Type
  • Low Side
  • Configuration
  • Non-Inverting
  • Maximum Supply Voltage (V)
  • 18
  • Peak Source Output (A)
  • 0.5
  • Peak Sink Output (A)
  • 0.5
  • Source Resistance (Ω)
  • 12.5
  • Sink Resistance (Ω)
  • 7.5
  • Propagation Delay t<sub>D1</sub> (ns)
  • 33
  • Propagation Delay t<sub>D2</sub> (ns)
  • 24
  • Rise Time (t<sub>R</sub>, ns)
  • 40
  • Fall Time (t<sub>F</sub>, ns)
  • 28
  • Capacitive Load Drive
  • 1,000pF in 40 ns

Download datasheets and manufacturer documentation for Microchip MCP14A0052T-E/CH.

Data Sheets:

Application Notes:

The MCP14A0052 is an non-inverting, 0.5 A MOSFET gate driver available in 6 lead 2x2 DFN and 6 lead SOT-23 packages. These high-speed MOSFET gate drivers allow controllers and MCUs to quickly charge and discharge capacitive loads. The small package sizes allow the gate driver to be positioned close to the MOSFET's physical gate connection, which minimizes gate bounce caused by the parasitic effects of PCB layout and reduces EMI. Rise time, fall time, propagation delay and cross-conduction current are all minimized. In addition, these devices feature a unique architecture with low input thresholds, ideally suited for use with a low-voltage MCU to minimize power losses within the system.


Inverting option is also available, MCP14A0051



  • High Peak Output Current: 0.5 A (typical)
  • Wide Input Supply Voltage Operating Range: 4.5 V to 18 V
  • Low Shoot-Through/Cross-Conduction Current in Output Stage
  • 1000 pF in 40 ns (typical)
  • Short Delay Times: tD1 = 33 ns, tD2 = 24 ns (typical)
  • Low Supply Current: 375 μA (typical)
  • Low Voltage Threshold Input and Enable with Hysteresis: 1.2 to 1.6 V
  • Latch-Up Protected: Withstands 0.5 A Reverse Current
  • 6L SOT-23
  • 6L 2 x 2 DFN

    • User Guide
