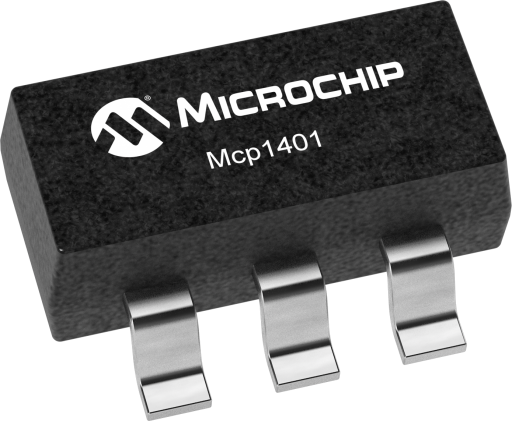

Microchip MCP1401T-E/OTVAO

Manufacturer No:

MCP1401T-E/OTVAO

Manufacturer:

Microchip

Package:

SC-74A, SOT-753

Description:

SINGLE OUTPUT MOSFET DRIVER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP1401T-E/OTVAO information

Microchip MCP1401T-E/OTVAO technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP1401T-E/OTVAO.

Type
Parameter

Capacitive Load Drive
470 pF in 19 ns

MOSFET Driver Type
Low Side

Maximum Supply Voltage V (volt)
18

Peak Sink Current A (ampere)
0.5

Peak Source Current A (ampere)
0.5

Propagation Delay tD1 ns (nanosecond)
35

Propagation Delay tD2 ns (nanosecond)
35

Sink Resistance Ω (ohm)
10

Source Resistance Ω (ohm)
12

Fall Time tF ns (nanosecond)
15

Rise Time tR ns (nanosecond)
19

Download datasheets and manufacturer documentation for Microchip MCP1401T-E/OTVAO.

The MCP1401(inverting) and MCP1402(non-inverting) are 500 mA MOSFET gate drivers in 5-Lead SOT-23 packages. These small package MOSFET gate drivers allow the driver to be positioned close to the MOSFET's physical gate connection, which minimizes gate bounce caused by the parasitic effects of PCB layout. This also minimizes gate rise-times,-fall times, propagation-delay times and shoot-through current; all of which help to increase system efficiency and reduce power dissipation.

Space-saving 5-Lead SOT-23 Package

Wide Input Supply Operating Voltage Range: 4.5 V to 18 V

Low Shoot-Through/Cross-Conduction Current in Output Stage

470 pF in 19 ns (Typical)

1000 pF in 34 ns (Typical)

Matched, Short 35 ns Delay Times (Typical)

Matched, Fast Rise and Fall Times (Under 20 ns, Typical)

Low Output Impedance: Less Than 12 Ω (Typical)

850 µA (Typical) with 3 V Logic Input

100 µA (Typical) with 0 V Logic Input

Latch-Up Protected, Can Withstand Up to 500 mA Reverse Current

Logic Input Will Withstand Up to 5 V Negative Swings

ESD Protected

User Guide
