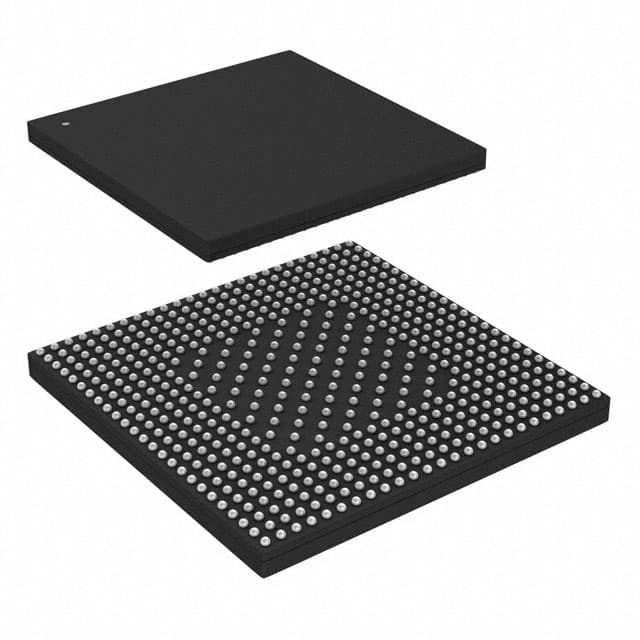

NXP MCIMX7D3DVK10SC

Manufacturer No:

MCIMX7D3DVK10SC

Manufacturer:

NXP

Package:

488-TFBGA

Description:

0.4mm ARM® Cortex®-A7, ARM® Cortex®-M4 Microprocessor i.MX7D Series 1.1V 488-TFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCIMX7D3DVK10SC information

NXP MCIMX7D3DVK10SC technical specifications, attributes, parameters and parts with similar specifications to NXP MCIMX7D3DVK10SC.

Type
Parameter

Factory Lead Time
12 Weeks

Package / Case
488-TFBGA

Surface Mount
YES

Operating Temperature
0°C~95°C TJ

Packaging
Tray

Series
i.MX7D

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
488

HTS Code
8542.31.00.01

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
1.1V

Terminal Pitch
0.4mm

JESD-30 Code
S-PBGA-B488

Supply Voltage-Max (Vsup)
1.25V

Supply Voltage-Min (Vsup)
1.045V

Speed
1.0GHz

uPs/uCs/Peripheral ICs Type
MULTIFUNCTION PERIPHERAL

Core Processor
ARM® Cortex®-A7, ARM® Cortex®-M4

Address Bus Width
16

Boundary Scan
YES

Voltage - I/O
1.8V 3.3V

Ethernet
10/100/1000Mbps (2)

Number of Cores/Bus Width
2 Core 32-Bit

Graphics Acceleration
No

RAM Controllers
LPDDR2, LPDDR3, DDR3, DDR3L

USB
USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2)

Additional Interfaces
AC'97, CAN, eCSPI, I2C, I2S, MMC/SD/SDIO, PCIe, QSPI, SAI, UART

Co-Processors/DSP
Multimedia; NEON? MPE

Security Features
A-HAB, ARM TZ, CAAM, CSU, SJC, SNVS

Display & Interface Controllers
Keypad, LCD, MIPI

Length
12mm

Height Seated (Max)
1.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MCIMX7D3DVK10SC.

MCIMX7D3DVK10SC Overview

Shipping overseas is convenient thanks to the embedded microprocessor's packaging in 488-TFBGA. High reliability is achieved using advanced packaging method Tray. 2 Core 32-Bit cores/Bus width are present in the CPU. Identify the operating temperature around 0°C~95°C TJ. In the i.MX7D series, it is found. The CPU is cored by a processor with a number of 0 cores. A total of LPDDR2, LPDDR3, DDR3, DDR3L RAM controllers are used by this CPU. The microprocessor features interfaces AC'97, CAN, eCSPI, I2C, I2S, MMC/SD/SDIO, PCIe, QSPI, SAI, UART for better service. At 1.8V 3.3V, the CPU runs its I/O. A MULTIFUNCTION PERIPHERAL represents the uPs/uCs/Peripheral ICs type. In total, 488 terminations have been made. Using a 1.1V voltage supply, the microprocessor should turn on and run. The maximum supply current of this microprocessor is 1.25V. With a 32 width external data bus, this CPU has a wide external data bus.

MCIMX7D3DVK10SC Features

ARM® Cortex®-A7, ARM® Cortex®-M4 Core

MCIMX7D3DVK10SC Applications

There are a lot of NXP USA Inc.
MCIMX7D3DVK10SC Microprocessor applications.

Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
