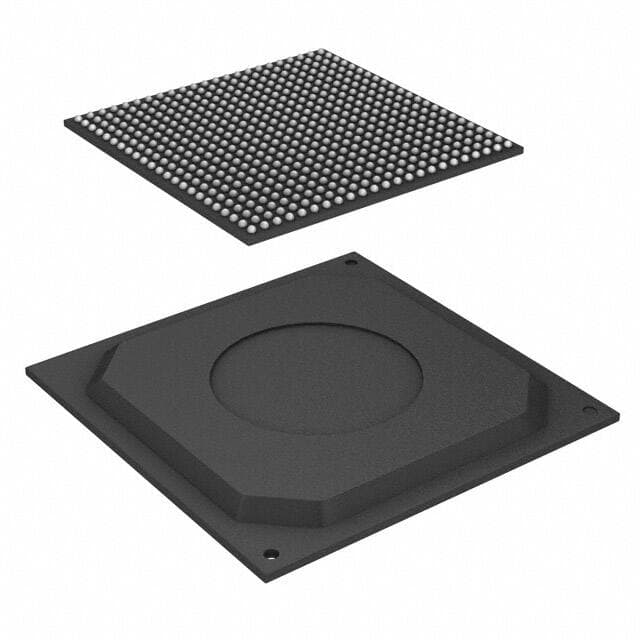

NXP MCIMX535DVV1CR2

Manufacturer No:

MCIMX535DVV1CR2

Manufacturer:

NXP

Package:

529-FBGA

Description:

0.8mm ARM® Cortex®-A8 0.9/1.251.3V Microprocessor i.MX53 Series MCIMX535 1.25V 529-FBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCIMX535DVV1CR2 information

NXP MCIMX535DVV1CR2 technical specifications, attributes, parameters and parts with similar specifications to NXP MCIMX535DVV1CR2.

Type
Parameter

Factory Lead Time
15 Weeks

Package / Case
529-FBGA

Surface Mount
YES

Operating Temperature
-20°C~85°C TC

Packaging
Tape & Reel (TR)

Series
i.MX53

Published
2007

JESD-609 Code
e2

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
529

ECCN Code
5A992

Terminal Finish
TIN COPPER/TIN SILVER

HTS Code
8542.31.00.01

Subcategory
Graphics Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.25V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
MCIMX535

JESD-30 Code
S-PBGA-B529

Supply Voltage-Max (Vsup)
1.4V

Power Supplies
0.9/1.251.3V

Supply Voltage-Min (Vsup)
1.2V

Speed
1.0GHz

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR CIRCUIT

Core Processor
ARM® Cortex®-A8

Voltage - I/O
1.3V 1.8V 2.775V 3.3V

Ethernet
10/100Mbps (1)

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
Yes

RAM Controllers
LPDDR2, DDR2, DDR3

USB
USB 2.0 (2), USB 2.0 + PHY (2)

Additional Interfaces
1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, UART

Co-Processors/DSP
Multimedia; NEON? SIMD

Security Features
ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection

Display & Interface Controllers
Keypad, LCD

SATA
SATA 1.5Gbps (1)

Length
19mm

Height Seated (Max)
1.85mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MCIMX535DVV1CR2.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

MCIMX535DVV1CR2 Overview

With a packing size of 529-FBGA, this embedded microprocessor is ideal for international shipping. High reliability is achieved with advanced packaging method Tape & Reel (TR). CPUs have 1 Core 32-Bit cores/bus width. Be aware of the operating temperature around -20°C~85°C TC. A i.MX53 series item. A ARM® Cortex®-A8 processor is present in this CPU. The CPU contains LPDDR2, DDR2, DDR3 RAM controllers. This microprocessor is equipped with an interface of 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, UART. 1.3V 1.8V 2.775V 3.3V is the CPU's I/O address. I would rate this as a MICROPROCESSOR CIRCUIT for the uPs/uCs/Peripheral ICs type. You can search for variants of a microprocessor with MCIMX535. As a whole, there are 529 terminations. A 1.25V voltage supply should be used to turn on and run the cpu microprocessor. A maximum supply current of 1.4V can be achieved by the microprocessor. As a typical Graphics Processors, this cpu microprocessor has Graphics Processors display. The micro processor requires 0.9/1.251.3V power supplies according to the datasheets.
