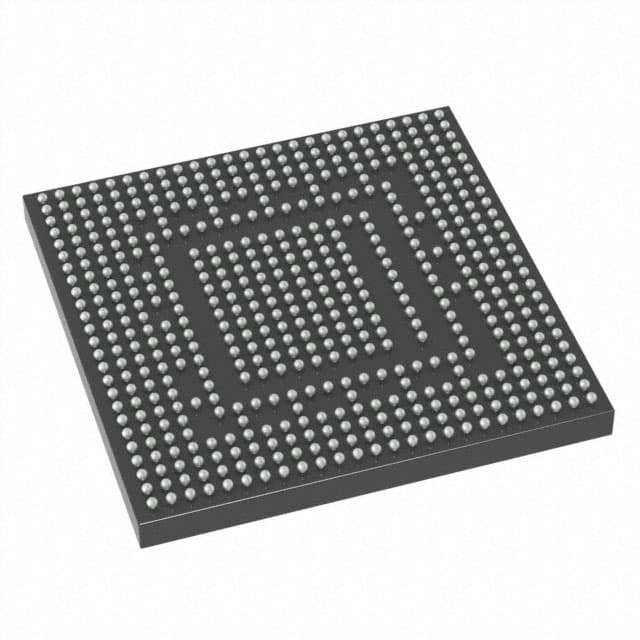

NXP MCIMX515DVK8C
Manufacturer No:
MCIMX515DVK8C
Manufacturer:
Package:
527-LFBGA
Description:
0.5mm ARM® Cortex®-A8 1.2V Microprocessor i.MX51 Series MCIMX515 1.1V 527-LFBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MCIMX515DVK8C information
NXP MCIMX515DVK8C technical specifications, attributes, parameters and parts with similar specifications to NXP MCIMX515DVK8C.
- Type
- Parameter
- Factory Lead Time
- 15 Weeks
- Package / Case
- 527-LFBGA
- Surface Mount
- YES
- Operating Temperature
- -20°C~85°C TC
- Packaging
- Tray
- Series
- i.MX51
- Published
- 2008
- JESD-609 Code
- e1
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 625
- ECCN Code
- 5A992
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- HTS Code
- 8542.31.00.01
- Subcategory
- Graphics Processors
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 1.1V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- MCIMX515
- JESD-30 Code
- S-PBGA-B625
- Supply Voltage-Max (Vsup)
- 1.15V
- Power Supplies
- 1.2V
- Supply Voltage-Min (Vsup)
- 1.05V
- Speed
- 800MHz
- uPs/uCs/Peripheral ICs Type
- MICROPROCESSOR CIRCUIT
- Core Processor
- ARM® Cortex®-A8
- Voltage - I/O
- 1.2V 1.875V 2.775V 3.0V
- Ethernet
- 10/100Mbps (1)
- Number of Cores/Bus Width
- 1 Core 32-Bit
- Graphics Acceleration
- Yes
- RAM Controllers
- LPDDR, DDR2
- USB
- USB 2.0 (3), USB 2.0 + PHY (1)
- Additional Interfaces
- 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART
- Co-Processors/DSP
- Multimedia; NEON? SIMD
- Security Features
- ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC
- Display & Interface Controllers
- Keypad, LCD
- Length
- 13mm
- Height Seated (Max)
- 1.3mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NXP MCIMX515DVK8C.
Environmental Information:
PCN Packaging:
MCIMX515DVK8C Overview
Shipping overseas is convenient since the embedded microprocessor is packed in 527-LFBGA. In order to provide high reliability, advanced packaging method Tray is used. Cores/Bus width is 1 Core 32-Bit. Recognize operating temperatures around -20°C~85°C TC. The cpu microprocessor belongs to the i.MX51 series. The CPU is cored with a ARM® Cortex®-A8 processor. The CPU uses LPDDR, DDR2 RAM controllers. This microprocessor features interfaces 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART. In this CPU, I/O is set to 1.2V 1.875V 2.775V 3.0V. In terms of uPs and uCs as well as peripheral ICs, this is a MICROPROCESSOR CIRCUIT. The microprocessor can be searched for with MCIMX515 if you are looking for variants. In total, there are 625 terminations. When the voltage supply is 1.1V, the cpu microprocessor should be powered on and run. It can supply a maximum current of 1.15V. Graphics Processors is a typical embedded microprocessor. According to its datasheet, this micro processor requires 1.2V power supplies.
MCIMX515DVK8C Features
ARM® Cortex®-A8 Core
MCIMX515DVK8C Applications
There are a lot of NXP USA Inc.
MCIMX515DVK8C Microprocessor applications.
- Consumer electronics products
- Toys
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
