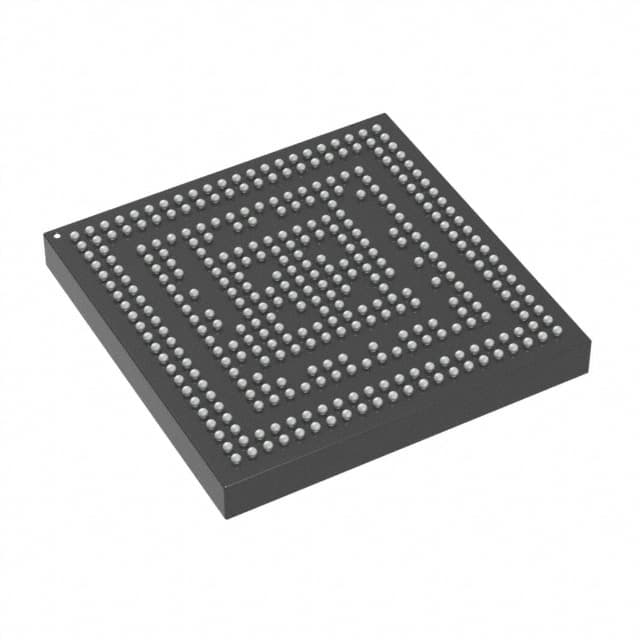

NXP MCIMX257CJN4A

Manufacturer No:

MCIMX257CJN4A

Manufacturer:

NXP

Package:

347-LFBGA

Description:

0.5mm ARM926EJ-S 1.2/1.51.8/3.3V 32-bit Microprocessor i.MX25 Series MCIMX257 1.45V 347-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCIMX257CJN4A information

NXP MCIMX257CJN4A technical specifications, attributes, parameters and parts with similar specifications to NXP MCIMX257CJN4A.

Type
Parameter

Factory Lead Time
15 Weeks

Package / Case
347-LFBGA

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
i.MX25

Published
2005

JESD-609 Code
e1

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
347

ECCN Code
5A992

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code
8542.31.00.01

Subcategory
Microprocessors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.45V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
MCIMX257

JESD-30 Code
S-PBGA-B347

Power Supplies
1.2/1.51.8/3.3V

Supply Voltage-Min (Vsup)
1.38V

Number of I/O
6

Speed
400MHz

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR

Core Processor
ARM926EJ-S

Clock Frequency
24MHz

Bit Size
32

Address Bus Width
26

Boundary Scan
YES

Low Power Mode
YES

External Data Bus Width
16

Format
FIXED POINT

Integrated Cache
YES

RAM (words)
128000

Voltage - I/O
2.0V 2.5V 2.7V 3.0V 3.3V

Ethernet
10/100Mbps (1)

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
No

RAM Controllers
LPDDR, DDR, DDR2

USB
USB 2.0 + PHY (2)

Additional Interfaces
CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, UART

Bus Compatibility
I2C; USB

Download datasheets and manufacturer documentation for NXP MCIMX257CJN4A.

MCIMX257CJN4A Overview

The microprocessor is convenient for international shipping since it is packaged in 347-LFBGA. The packaging method Tray provides high reliability. There are 1 Core 32-Bit cores per bus width on the CPU. The operating temperature around -40°C~85°C TA should be understood. This is part of the i.MX25 series. The CPU is powered by a ARM926EJ-S core. There are LPDDR, DDR, DDR2 RAM controllers on this CPU. This microprocessor features CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, UART interfaces to better serve its users. The CPU runs I/O at 2.0V 2.5V 2.7V 3.0V 3.3V. uPs/uCs/Peripheral ICs are a MICROPROCESSOR. Using MCIMX257 will help you find variants of the cpu microprocessor. To date, there have been 347 terminations. You should be able to turn on and run the embedded microprocessor with a voltage supply of 1.45V. An architecture based on 32 bits is used. A maximum supply current of 1.52V is available. The embedded microprocessor is a typical Microprocessors. With a width of 16, this CPU has a wide external data bus. There is a clock frequency of 24MHz on the microprocessor. According to the datasheet, the embedded microprocessor requires 1.2/1.51.8/3.3V power supply. By using 6 I/Os, CPU programs transfer data.

MCIMX257CJN4A Features

ARM926EJ-S Core
32-Bit Structure
6 I/Os

MCIMX257CJN4A Applications

There are a lot of NXP USA Inc.
MCIMX257CJN4A Microprocessor applications.

Equipment control
Instrument control
Consumer electronics products
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
