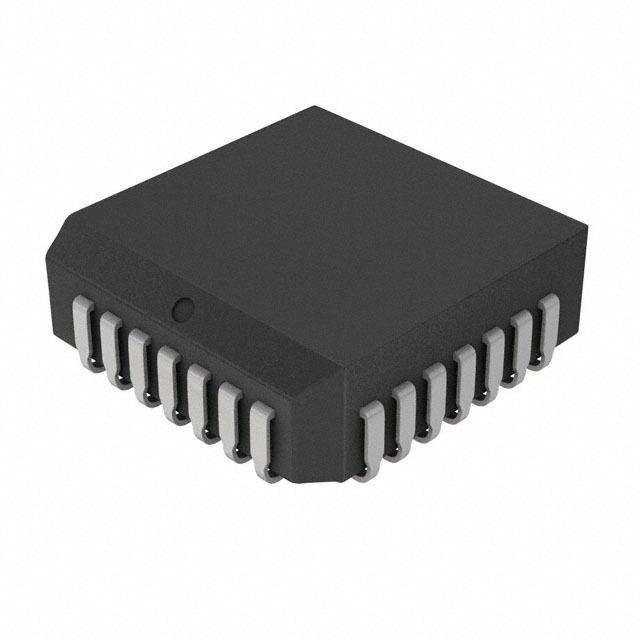

Manufacturer No:

MC88915EI70R2

Manufacturer:

Renesas

Package:

PLCC

Description:

5V 70MHz Clock Generators 28 Pins PLCC 28 Terminals Tape & Reel (TR)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC88915EI70R2 information

Renesas MC88915EI70R2 technical specifications, attributes, parameters and parts with similar specifications to Renesas MC88915EI70R2.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • PLCC
  • Number of Pins
  • 28
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2003
  • JESD-609 Code
  • e3
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 28
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • J BEND
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 28
  • Operating Supply Voltage
  • 5V
  • Temperature Grade
  • COMMERCIAL
  • Number of Circuits
  • 1
  • Max Supply Voltage
  • 5.25V
  • Min Supply Voltage
  • 4.75V
  • Input
  • TTL
  • Logic IC Type
  • PLL BASED CLOCK DRIVER
  • Same Edge Skew-Max (tskwd)
  • 0.75 ns
  • Number of True Outputs
  • 7
  • Number of Inverted Outputs
  • 1
  • Height Seated (Max)
  • 4.57mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas MC88915EI70R2.

Datasheets:

MC88915EI70R2 Overview


Clock ICs are packaged using the Tape & Reel (TR) method. In the PLCC package, there is an embedded clock generator. A maximum temperature of 260 can be sustained by this clock generator ic during reflowing. There are a total of 28 terminations in this file. A voltage of 5V should be applied to this electronic frequency generator. In this case, TTL is designed to be the input of the clock generator. To access the electronic component's full performance, 1 circuits are implemented. The frequency generator has a maximum frequency of 70MHz. An IC that generates clocks specifically for microprocessors, this clock PLL is 28-bits in si28e. A 28 pin is available on the clock PLL. In addition to having an impressive low-temperature performance, this clock device can perform -40°C operations simultaneously. This RF synthesizer can last with attenuated performance at 85°C. Clock PLL is capable of handling a voltage of 5V. The timing skew of this frequency synthesizer is low at 0.75 nsmax. There are 7 pins configured for enabling high true outputs on this clock generator. In order to supply this clock PLL, a voltage greater than 5.25V is not acceptable. This RF synthesizer can operate at a voltage as low as 4.75V. In PLL BASED CLOCK DRIVER logic circuits, this electronic frequency generator is used primarily as a clock component.

MC88915EI70R2 Features


Available in the PLCC
Supply voltage of 5V
Operating supply voltage of 5V
7 true outputs


MC88915EI70R2 Applications


There are a lot of Integrated Device Technology (IDT)
MC88915EI70R2 Clock Generators applications.


  • Wide area power system
  • Digital circuits
  • Wireless base station for LTE, LTE-advanced
  • Picocells, femtocells and small cells
  • Sampling clocks for ADC and DAC
  • 1 Gigabit Ethernet
  • 10 Gigabit Ethernet
  • FPGA and processor clocks
  • Line cards used in telephone exchange
  • Fiber Channel
