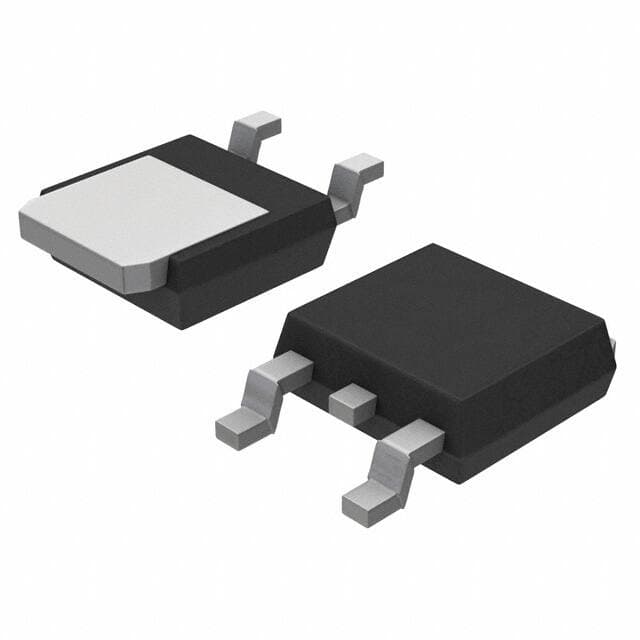

ONSEMI MC78M15CDTRK
Manufacturer No:
MC78M15CDTRK
Manufacturer:
Package:
TO-252-3, DPak (2 Leads + Tab), SC-63
Description:
Fixed 2.29mm MC78M PMIC 3 TO-252-3, DPak (2 Leads + Tab), SC-63
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MC78M15CDTRK information
ONSEMI MC78M15CDTRK technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MC78M15CDTRK.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- TO-252-3, DPak (2 Leads + Tab), SC-63
- Operating Temperature
- 0°C~125°C
- Packaging
- Tape & Reel (TR)
- Published
- 2004
- JESD-609 Code
- e0
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Terminal Finish
- Tin/Lead (Sn80Pb20)
- Subcategory
- Other Regulators
- Packing Method
- TAPE AND REEL
- Technology
- BIPOLAR
- Terminal Position
- SINGLE
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 240
- Number of Functions
- 1
- Terminal Pitch
- 2.29mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- MC78M
- Pin Count
- 3
- JESD-30 Code
- R-PSSO-G2
- Number of Outputs
- 1
- Output Voltage
- 15V
- Output Type
- Fixed
- Output Configuration
- Positive
- Current - Output
- 500mA
- Output Voltage 1
- 15V
- Voltage - Output (Min/Fixed)
- 15V
- Number of Regulators
- 1
- Min Input Voltage
- 35V
- Protection Features
- Over Temperature, Short Circuit
- PSRR
- 70dB (120Hz)
- Dropout Voltage
- 2V
- Dropout Voltage1-Nom
- 2V
- Voltage Tolerance-Max
- 4%
- Length
- 6.54mm
- Width
- 6.095mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ONSEMI MC78M15CDTRK.
Datasheets:
PCN Obsolescence/ EOL:
ReachStatement:
MC78M15CDTRK Overview
Deliveries are in Tape & Reel (TR) cases. The package is in a TO-252-3, DPak (2 Leads + Tab), SC-63 case. Basically, the voltage regulator chip is made up of 2 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of 0°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 500mA on this regulator. The total number of pins in the regulator is 3. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. As an FYI, this IC voltage regulator has the basic part number MC78M. An example of this type of component would be a Other Regulators component. Packing the voltage regulator IC in this way is called TAPE AND REEL packing.
