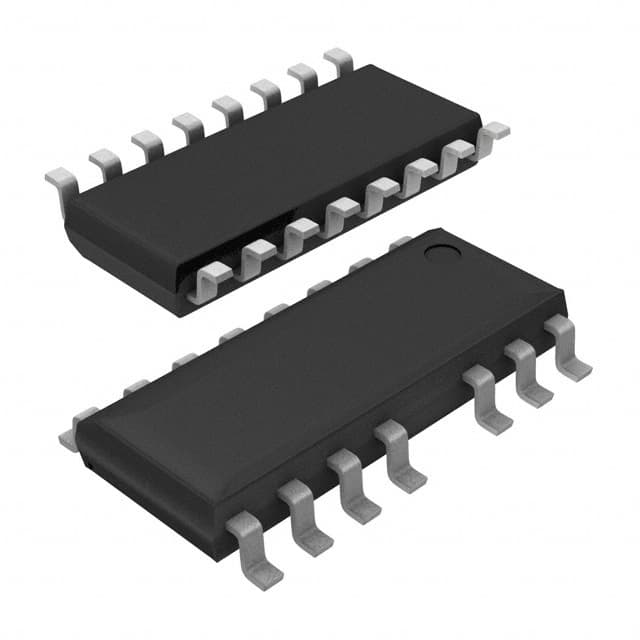

ONSEMI MC74HC589ADR2

Manufacturer No:

MC74HC589ADR2

Manufacturer:

ONSEMI

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

Shift Register -55°C~125°C Shift Register 74HC Series 74HC589 16 Pin 3V 16-SOIC (0.154, 3.90mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC74HC589ADR2 information

ONSEMI MC74HC589ADR2 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MC74HC589ADR2.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.154, 3.90mm Width)

Number of Pins
16

Number of Elements
1

Operating Temperature
-55°C~125°C

Packaging
Cut Tape (CT)

Series
74HC

Published
2008

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Voltage - Supply
2V~6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Supply Voltage
3V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
74HC589

Function
Universal

Qualification Status
Not Qualified

Output Type
Standard

Supply Voltage-Min (Vsup)
2V

Number of Circuits
2

Propagation Delay
30 ns

Family
HC/UH

Logic Function
Shift Register

Logic Type
Shift Register

Output Polarity
TRUE

Number of Bits per Element
8

Trigger Type
POSITIVE EDGE

Number of Input Lines
3

Count Direction
RIGHT

Length
9.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ONSEMI MC74HC589ADR2.

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

MC74HC589ADR2 Overview

As a result, 16-SOIC (0.154, 3.90mm Width) package contains the embedded device. 16 is the number of terminations on the chip. This item is packed in case Cut Tape (CT). There is 3V operating supply voltage listed on the part. There are 16 pins on the device. Using Surface Mount as a mount point is recommended. An electronic component is included in the HC/UH. Surface Mount is the way in which this component is mounted. There is a temperature range of -55°C~125°C. Votage within the range of 2V~6V is supplied. In this case, the electrical component belongs to the series 74HC. If you use the 74HC589 family, you can find parts that are similar. This part must have a minimum supply voltage (Vsup) of 2V. The device has a total of 3 input lines. 6V Vsup is the maximum supply voltage (Vsup) for this part. 2 circuits are present in this device.

MC74HC589ADR2 Features

With 16 pins
Mounted in Surface Mount type.
Based on 74HC589 family

MC74HC589ADR2 Applications

There are a lot of ON Semiconductor
MC74HC589ADR2 Shift Registers applications.

Flash Memory
Cache memory in CPU
Data Format Converters
Data Processors
Pseudo Random Pattern Generator
Pulse Extenders
Pattern Recognizers
Interconnectors
Counter
Data manipulation
