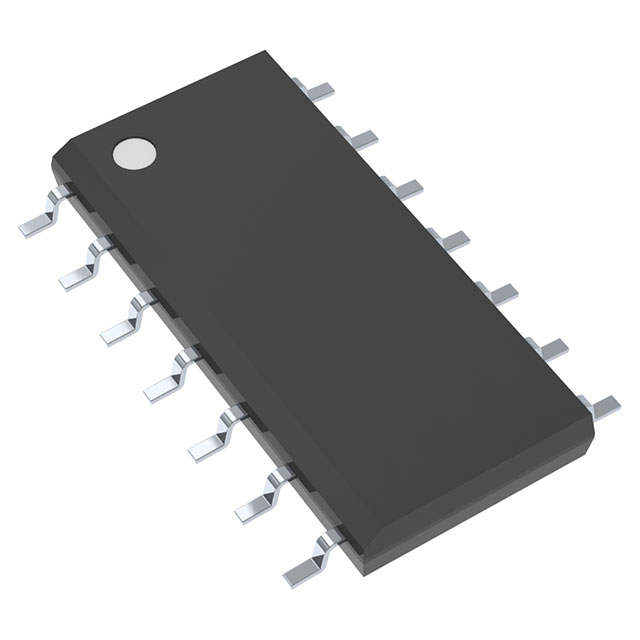

ONSEMI MC74HC08ADG

Manufacturer No:

MC74HC08ADG

Manufacturer:

ONSEMI

Package:

14-SOIC (0.154, 3.90mm Width)

Description:

Quad 2-Input AND Gate

Quantity:

Delivery:

Payment:

In Stock :2255

Price not displayed? Please send an RFQ, and we will respond immediately.

MC74HC08ADG information

ONSEMI MC74HC08ADG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MC74HC08ADG.

Type
Parameter

Package Type
SOIC-14

MSL Temp (°C)
260

Container Type
TUBE

Type
AND

Channels
4

Case Outline
751A-03

MSL Type
1

Container Qty.
55

VCC Min (V)
2

VCC Max (V)
6

tpd Max (ns)
15

IO Max (mA)
4

Download datasheets and manufacturer documentation for ONSEMI MC74HC08ADG.

Package Drawing:

c4333ad84403270324dccd7ba8939218.pdf

7410d130d7cfd5fa3a768fc30e3f334f.pdf

Datasheet:

mc74hc08a-d.pdf

High-Performance Silicon-Gate CMOS The MC74HC08A is identical in pinout to the LS08. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Feature

Output Drive Capability: 10 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS and TTL
Operating Voltage Range: 2 to 6V
Low Input Current: 1mA
High Noise Immunity Characteristic of CMOS Devices
In Compliance With the JEDEC Standard No. 7A Requirements
Chip Complexity: 24 FETs or 6 Equivalent Gates
Pb-Free Packages are Available*
