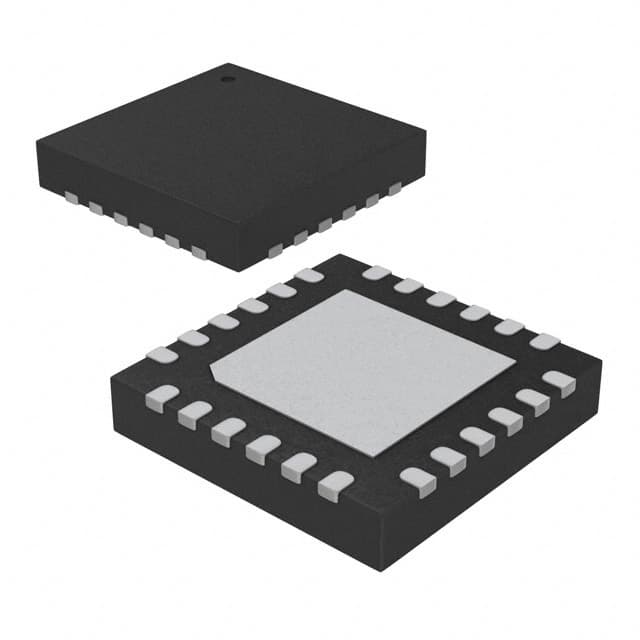

NXP MC34845DEP
NXP MC34845DEP

NXP MC34845DEP

Manufacturer No:

MC34845DEP

Manufacturer:

NXP

Package:

24-UFQFN Exposed Pad

Description:

12V 0.5mm PMIC MC34845 300kHz 10V 24-UFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC34845DEP information

NXP MC34845DEP technical specifications, attributes, parameters and parts with similar specifications to NXP MC34845DEP.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 24-UFQFN Exposed Pad
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tray
  • Published
  • 2008
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 24
  • ECCN Code
  • EAR99
  • Type
  • DC DC Regulator
  • Applications
  • Backlight
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Display Drivers
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 10V
  • Terminal Pitch
  • 0.5mm
  • Frequency
  • 300kHz
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • MC34845
  • Number of Outputs
  • 6
  • Qualification Status
  • Not Qualified
  • Power Supplies
  • 12V
  • Voltage - Output
  • 8V~60V
  • Topology
  • Step-Up (Boost)
  • Current - Output / Channel
  • 2.6A Switch
  • Internal Switch(s)
  • Yes
  • Dimming
  • PWM
  • Number of Segments
  • 96
  • Voltage - Supply (Max)
  • 21V
  • Voltage - Supply (Min)
  • 5V
  • Multiplexed Display Capability
  • NO
  • Length
  • 4mm
  • Width
  • 4mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC34845DEP.

Datasheets:

Environmental Information:

PCN Packaging:

MC34845DEP Overview


Save board space with 24-UFQFN Exposed Pad package. 6 outputs are designed into LED drivers.Surface Mount is used to mount the led light driver.With high reliability and efficiency, this emerges as a DC DC Regulator.This LED driver can be operated at a temperature of -40°C~85°C TA. A number of benefits are available to Backlight.Based on the frequency of 300kHz, it operates on the basis of a pulse.In this case, the terminations are set to 24.Undetermined failures may occur if the voltage supply falls below 5V.A total of 96 segments are estimated.It can be found under the part number MC34845.A 8V~60V volt output voltage is provided by this device.This value is designed to support a maximum of 21V.As a result, its characteristics can also be categorized as Display Drivers.

MC34845DEP Features


Available in the 24-UFQFN Exposed Pad package
Operating temperature of -40°C~85°C TA
Frequency of 300kHz
Supply voltage of 10V


MC34845DEP Applications


There are a lot of NXP USA Inc.
MC34845DEP LED Driver ICs applications.


  • Museum lighting
  • High-end retail lighting
  • Medical surgery lighting
  • Replacement lamps
  • Panel lighting
  • Down lights
  • Linear fluorescent
  • A- lamps
  • General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
  • Industrial LED Lighting: Image Recognition Devices
