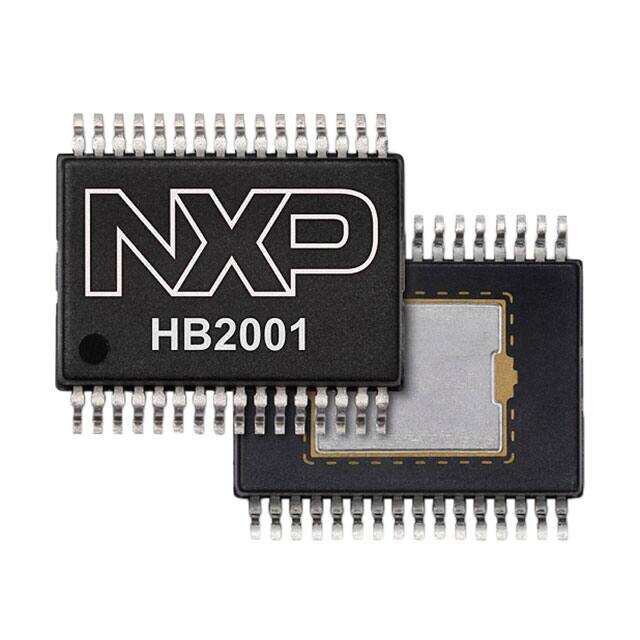

NXP MC33HB2001EKR2

Manufacturer No:

MC33HB2001EKR2

Manufacturer:

NXP

Package:

32-SSOP (0.295, 7.50mm Width) Exposed Pad

Description:

Tape & Reel (TR) 32-SSOP (0.295, 7.50mm Width) Exposed Pad SPI 5V~28V Surface Mount -40°C~150°C TJ DC Motors, General Purpose Half Bridge (2) Inductive 5V~28V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC33HB2001EKR2 information

NXP MC33HB2001EKR2 technical specifications, attributes, parameters and parts with similar specifications to NXP MC33HB2001EKR2.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Surface Mount

Package / Case
32-SSOP (0.295, 7.50mm Width) Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2016

Feature
Slew Rate Controlled

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Applications
DC Motors, General Purpose

HTS Code
8542.39.00.01

Technology
Power MOSFET

Voltage - Supply
5V~28V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G32

Supply Voltage-Min (Vsup)
5V

Interface
SPI

Analog IC - Other Type
BRUSH DC MOTOR CONTROLLER

Output Configuration
Half Bridge (2)

Output Current-Max
16A

Voltage - Load
5V~28V

Fault Protection
Over Temperature, Over Voltage, UVLO

Rds On (Typ)
125m ? LS (Max), 125m ? HS (Max)

Load Type
Inductive

Length
11mm

Height Seated (Max)
2.45mm

Width
7.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC33HB2001EKR2.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

MC33HB2001EKR2 Overview

H bridge is packaged using Tape & Reel (TR).H bridge is provided in the 32-SSOP (0.295, 7.50mm Width) Exposed Pad package for the sake of cost savings.Improved reliabilbridge drivery can be ensured based on the supply voltage of 5V~28V.H bridge circuit is mounted in the way of Surface Mount.The operating temperature of -40°C~150°C TJ enables motor driver H bridge to work normally.H bridge motor driver is pretty useful in a wide range of applications, including DC Motors, General Purpose.H gates specific characteristics also include Slew Rate Controlled.There are 32 terminations used to end a transmission line with the H bridge that matches the characteristic impedance of the line.H bridge circuit operates with the supply voltage of 12V.H bridge circuit is incorporated with BRUSH DC MOTOR CONTROLLER as its analog IC type.

MC33HB2001EKR2 Features

Available in 32-SSOP (0.295, 7.50mm Width) Exposed Pad Package / Case
Operating Temperature at the range of Surface Mount

MC33HB2001EKR2 Applications

There are a lot of NXP USA Inc.
MC33HB2001EKR2 Full Bridge Drivers, Half-Bridge Drivers applications.

Industrial Pumps
Industrial Fans
Industrial Automation
Home Appliances
High-Performance Gaming Motherboards
Compact Blade Servers
DC-DC Converters
Desktop Computers
V-Core
Non-V-Core
