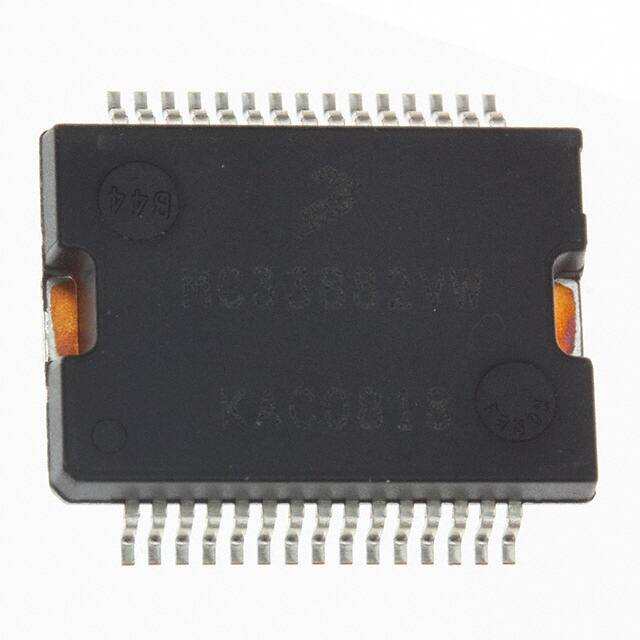

NXP MC33882PVW

Manufacturer No:

MC33882PVW

Manufacturer:

NXP

Package:

30-BSOP (0.433, 11.00mm Width) Exposed Pad

Description:

59/17V N-Channel 0.8mm PMIC MC33882 5V 30-BSOP (0.433, 11.00mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC33882PVW information

NXP MC33882PVW technical specifications, attributes, parameters and parts with similar specifications to NXP MC33882PVW.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
30-BSOP (0.433, 11.00mm Width) Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Published
2002

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
30

ECCN Code
EAR99

HTS Code
8542.39.00.01

Subcategory
Peripheral Drivers

Technology
MOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.8mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
MC33882

JESD-30 Code
R-PDSO-G30

Qualification Status
Not Qualified

Output Type
N-Channel

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
59/17V

Supply Voltage-Min (Vsup)
4.5V

Interface
SPI, Parallel

Output Configuration
Low Side

Voltage - Supply (Vcc/Vdd)
4.5V~5.5V

Switch Type
General Purpose

Ratio - Input:Output
1:1

Voltage - Load
8V~25V

Driver Number of Bits
8

Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Voltage

Turn On Time
10 µs

Output Peak Current Limit-Nom
3A

Rds On (Typ)
400m ?

Supply Voltage1-Nom
13V

Turn Off Time
10 µs

Built-in Protections
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Output Current Flow Direction
SINK

Supply Voltage1-Min
8V

Supply Voltage1-Max
25V

Length
15.9mm

Download datasheets and manufacturer documentation for NXP MC33882PVW.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

MC33882PVW Overview

As you can see, it's packaged in the way of a Tube.This file is included in package 30-BSOP (0.433, 11.00mm Width) Exposed Pad.This LED driving board is mounted using the mounting type Surface Mount.There is a switch type of General Purpose.It is best to set the temperature to -40°C~150°C TJ to ensure reliable operation.It is possible to use 6 outputs in the lighting driver.The LED driving board is powered by a voltage of 4.5V~5.5V.A maximum output voltage of N-Channel volts has been specified.I believe it belongs to the MC33882 family.As a result, there are 30 terminations.It contains 1 functions.It is possible to achieve a high level of efficiency with a supply voltage of 5V.Self-contained in an econtainer with a capacity of Peripheral Drivers, this LED driver is self-contained.The maximum supply voltage for this LED driver is 5.5V (Vsup).In order to operate normally, the supply voltage (Vsup) must be maintained above 4.5V.This part is powered by 59/17V.
