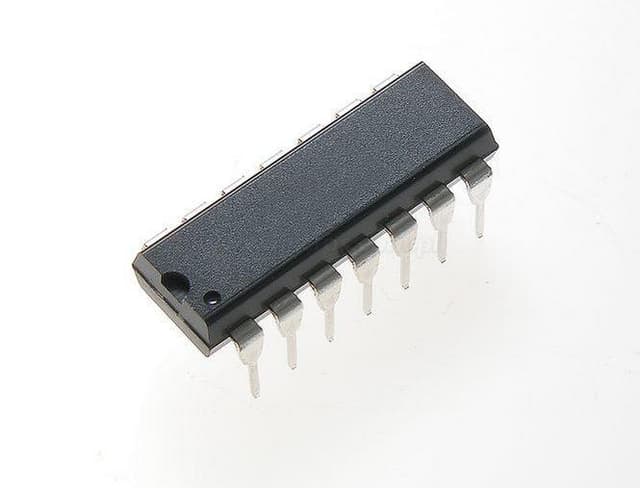

ONSEMI MC3302P
ONSEMI MC3302P

ONSEMI MC3302P

Manufacturer No:

MC3302P

Manufacturer:

ONSEMI

Package:

PDIP

Description:

1.3 ?s ?s Linear Comparators 100dB dB 2007 2.5mA ?A 20mV mV

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC3302P information

ONSEMI MC3302P technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MC3302P.

  • Type
  • Parameter
  • Package / Case
  • PDIP
  • Surface Mount
  • NO
  • Published
  • 2007
  • JESD-609 Code
  • e0
  • Number of Terminations
  • 14
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Comparator
  • Technology
  • BIPOLAR
  • Terminal Position
  • DUAL
  • Terminal Form
  • THROUGH-HOLE
  • Peak Reflow Temperature (Cel)
  • 235
  • Number of Functions
  • 4
  • Supply Voltage
  • 5V
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 14
  • Qualification Status
  • Not Qualified
  • Output Type
  • OPEN-COLLECTOR
  • Power Supplies
  • 5V
  • Temperature Grade
  • INDUSTRIAL
  • Number of Channels
  • 4
  • Max Supply Voltage
  • 30V
  • Power Dissipation-Max
  • 1W
  • Nominal Supply Current
  • 2.5mA
  • Max Supply Current
  • 2.5mA
  • Current - Output
  • 16mA
  • Quiescent Current
  • 800?A
  • Response Time
  • 1.3 ?s
  • Amplifier Type
  • COMPARATOR
  • Current - Input Bias
  • 500nA
  • Output Current per Channel
  • 16mA
  • Input Offset Voltage (Vos)
  • 20mV
  • Voltage Gain
  • 100dB
  • Average Bias Current-Max (IIB)
  • 1?A
  • Length
  • 18.86mm
  • Width
  • 7.62mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for ONSEMI MC3302P.

Datasheets:

ReachStatement:

MC3302P Overview


Electronic comparator is packaged in PDIP for convenient transportation.This comparator is of the OPEN-COLLECTOR output type.You can find 14 terminals of the comparator.Other Comparator like the device play a important role in the industry.Supplied by 5V voltage, the comparator can accomplish the many demanding tasks.The pinout of the component starts from 14 pins it has.This comparator presents a quiescent current of 800?A .For normal use of the device, the nominal supply current should be 2.5mA .Current supply exceeding 2.5mA could cause disfunction of the compartator.5V power supplies are enough to run the device.From the voltage formula, the voltage gain of the part is 100dB .Temperature higher than 85°C is not recommended.Temperature lower than -40°C is not suitable for the it.The maximal supply voltage of the comparator is 30V .This comparator allows minimum supply voltage of 3V .4 channels cooperate together to maintain the output quality.The comparator essentially has a COMPARATOR amplifier that has very high gain.The output current of this device is rated 16mA .

MC3302P Features


OPEN-COLLECTOR output capability
Quiescent Current: 800?A
Voltage Gain: 100dB
COMPARATOR amplifier


MC3302P Applications


There are a lot of ON Semiconductor
MC3302P linear comparators applications.


  • Mobile Communications
  • Notebooks and PDAs
  • Battery-Powered Electronics
  • General-Purpose Portable Devices
  • General-Purpose, Low-Voltage Applications
  • Self-diagnostics
  • Lithium ion battery monitoring
  • Battery management and protection
  • Current and voltage sensing
  • Analog front end
