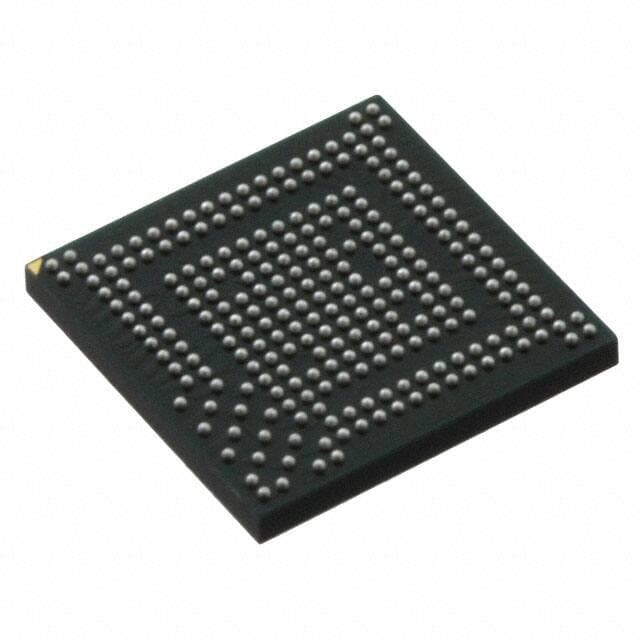

NXP MC13783VK

Manufacturer No:

MC13783VK

Manufacturer:

NXP

Package:

247-TFBGA

Description:

247 Terminations MC13783 Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC13783VK information

NXP MC13783VK technical specifications, attributes, parameters and parts with similar specifications to NXP MC13783VK.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
247-TFBGA

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tray

Published
2004

JESD-609 Code
e1

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
247

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Applications
Handheld/Mobile Devices

HTS Code
8542.39.00.01

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
MC13783

JESD-30 Code
S-PBGA-B247

Length
10mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC13783VK.

Datasheets:

nxpusainc-mc13783vkr2-datasheets-5543.pdf

MC13783VK Overview

It is acceptable to ship in the direction of Tray .In order to facilitate transportation, it is packaged the power management in 247-TFBGA .For ease of adaptability, Surface Mount is an universal mounting method.Applications targeting this power management include Handheld/Mobile Devices and others.Ideally, the operating temperature of the power management ic should be set at -40°C~85°C in order to prevent malfunction.Get more power ic's pin-to-pin solutions for your special needs by searching MC13783 .The power management is equipped with 247 terminals.

MC13783VK Features

Mainly used in Handheld/Mobile Devices applications
Operating temperature: -40°C~85°C

MC13783VK Applications

There are a lot of NXP USA Inc.
MC13783VKPower Management applications.

Portable Navigation Devices
Portable Media Players
Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
Motherboard
Standard notebook PC
