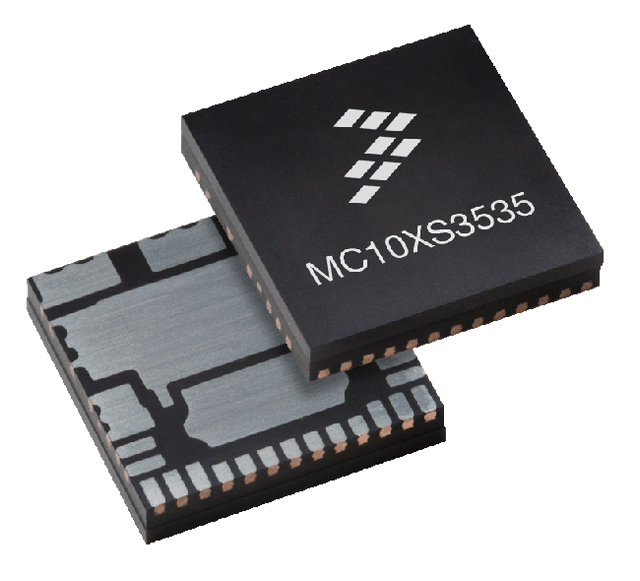

NXP MC10XS3535JHFK
NXP MC10XS3535JHFK

NXP MC10XS3535JHFK

Manufacturer No:

MC10XS3535JHFK

Manufacturer:

NXP

Package:

24-PowerQFN

Description:

3.3/5V N-Channel PMIC 24-PowerQFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC10XS3535JHFK information

NXP MC10XS3535JHFK technical specifications, attributes, parameters and parts with similar specifications to NXP MC10XS3535JHFK.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 24-PowerQFN
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tray
  • Published
  • 2012
  • Feature
  • Watchdog Timer
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 24
  • ECCN Code
  • EAR99
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Peripheral Drivers
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Number of Outputs
  • 6
  • Qualification Status
  • Not Qualified
  • Output Type
  • N-Channel
  • Power Supplies
  • 3.3/5V
  • Interface
  • SPI
  • Voltage - Supply (Vcc/Vdd)
  • 3V~5.5V
  • Switch Type
  • General Purpose
  • Ratio - Input:Output
  • 1:6
  • Voltage - Load
  • 7V~20V
  • Driver Number of Bits
  • 5
  • Fault Protection
  • Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
  • Rds On (Typ)
  • 10m ? (Max), 35m ? (Max)
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC10XS3535JHFK.

Environmental Information:

MC10XS3535JHFK Overview


It is packaged in the form of a Tray.It is included with the 24-PowerQFN package as well.A Surface Mount mounting is used for the LED driving board.The switch type of this switch is General Purpose.To ensure reliable performance, the temperature should be set to -40°C~125°C TA.The lighting driver has a total of 6 outputs that are available for use.With a supply voltage of 3V~5.5V, the LED driving board operates.A maximum output voltage of N-Channel volts can be obtained with this LED driver.There are Watchdog Timer features available on the LED driving board.A total of 24 terminations can be found in it.The LED driver is packaged in an econtainer with a capacity of Peripheral Drivers.It has a power supply of 3.3/5V.
