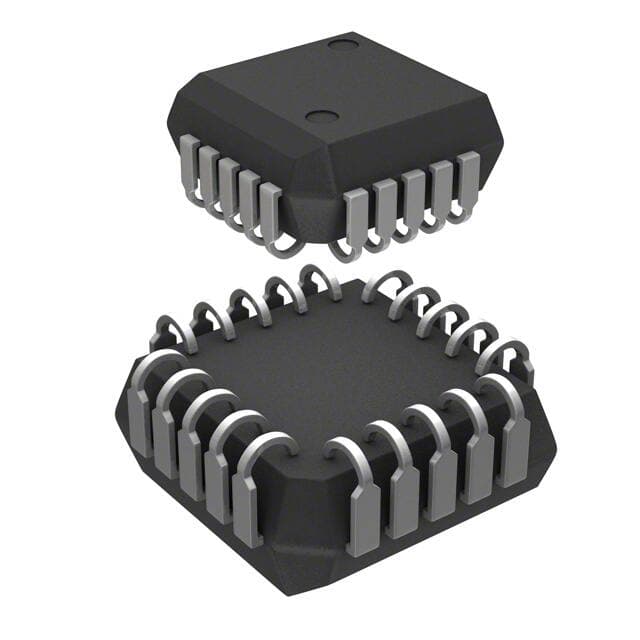

ONSEMI MC10E1651FN

Manufacturer No:

MC10E1651FN

Manufacturer:

ONSEMI

Package:

20-LCC (J-Lead)

Description:

Surface Mount Tube 100mA mA Linear Comparators 2007 50mA ?A Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC10E1651FN information

ONSEMI MC10E1651FN technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MC10E1651FN.

Type
Parameter

Lifecycle Status
OBSOLETE (Last Updated: 1 week ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-LCC (J-Lead)

Number of Pins
20

Operating Temperature
0°C~85°C

Packaging
Tube

Series
MOSAIC III?

Published
2007

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

Type
with Latch

Terminal Finish
Tin/Lead (Sn/Pb)

Technology
ECL

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
5V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
20

Qualification Status
Not Qualified

Output Type
Differential, ECL

Number of Elements
2

Min Supply Voltage
5V

Nominal Supply Current
50mA

Output Current
100mA

Max Supply Current
50mA

Number of Bits
1

Propagation Delay
1.075 ns

Quiescent Current
50mA

Family
10E

Output Current per Channel
50mA

Output Polarity
COMPLEMENTARY

Hysteresis
27mV

Length
8.965mm

Height Seated (Max)
4.57mm

Width
8.965mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ONSEMI MC10E1651FN.

Datasheets:

onsemiconductor-mc10e1651fn-datasheets-0832.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

MC10E1651FN Overview

The product is packaged in 20-LCC (J-Lead) for ease of transportation.The comparator has an output type of Differential, ECL .This chip is designed with the Tube package.There are20 terminals on the comparator.When supplied with 5V voltage, the comparator is capable of performing a wide range of tasks.In terms of type, this is a typical with Latch comparator.Electronic comparator has a total of 2 elements.Electronic comparator includes 20 pins.The type of mounting recommended is Surface Mount .Electronic comparator is recommended that the operating temperature be set to 0°C~85°C in order to prevent malfunctions.There are 20 pins on the comparator.You can find more pin-to-pin solutions for your special requirements by searching MC10E1651 .There is a quiescent current of 50mA in this comparator.There is a Surface Mount for mounting it on a PCB or other board.Normal operation of the device requires a nominal supply current of 50mA .Electronic comparator is possible for the comparator to malfunction if the current supply exceeds 50mA .There is a minimum supply voltage of 5V for this comparator.Comparator electronics is a comparator part from the MOSAIC III? series.

MC10E1651FN Features

Differential, ECL output capability
with Latch IC
Employing 2 elements
Operates under 0°C~85°C
Quiescent Current: 50mA

MC10E1651FN Applications

There are a lot of ON Semiconductor
MC10E1651FN linear comparators applications.

Notebooks and PDAs
Battery-Powered Electronics
General-Purpose Portable Devices
General-Purpose, Low-Voltage Applications
Self-diagnostics
Lithium ion battery monitoring
Battery management and protection
Current and voltage sensing
Analog front end
Power management
