Renesas MC100ES6221AER2

Manufacturer No:

MC100ES6221AER2

Manufacturer:

Renesas

Package:

TQFP

Description:

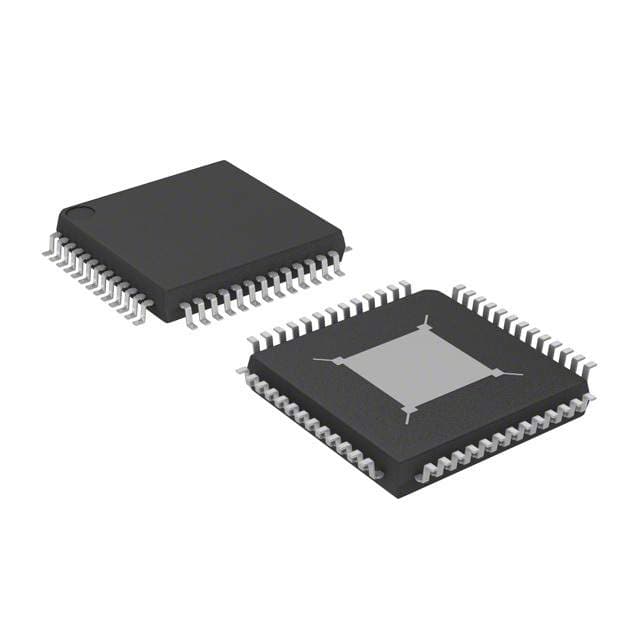

1 Circuit 2GHz 2.5V Clock Buffer QUAD 52 Pins TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC100ES6221AER2 information

Renesas MC100ES6221AER2 technical specifications, attributes, parameters and parts with similar specifications to Renesas MC100ES6221AER2.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
52

Packaging
Tape & Reel

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
52

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
110°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Technology
ECL

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
52

Power Supplies
-2.5/-3.3/2.5/3.3V

Max Supply Voltage
3.465V

Min Supply Voltage
2.375V

Quiescent Current
160mA

Frequency (Max)
2GHz

Input
ECL

Logic IC Type
LOW SKEW CLOCK DRIVER

Max I(ol)
0.005 A

Prop. Delay@Nom-Sup
0.95 ns

Propagation Delay (tpd)
0.95 ns

Number of True Outputs
20

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas MC100ES6221AER2.

Datasheets:

integrateddevicetechnology-mc100es6221aer2-datasheets-0149.pdf

MC100ES6221AER2 Overview

It is available in the case TQFP for this cut smart buffer. It is available in the case Tape & Reel. There is a maximum value of 2GHz for normal operation. There are 52 terminations in it. Using a supply voltage of 2.5V allows for high efficiency. It's in the way of Surface Mount. It has a number of pins of 52. The 52 pins are utilized for operation. There is an embedded device in Clock Drivers containing this circuit clock. At a minimum working temperature of -40°C, it maintains reliable operation. When the maximum operating temperature is set to 110°C, stable operation is ensured. A logic IC with a value of LOW SKEW CLOCK DRIVER is used for this application. Power for the clock buffer comes from a -2.5/-3.3/2.5/3.3V volt supply. It is possible to get 20 true outputs. There is a maximum supply voltage of 3.465VV that can be handled by this clock divider. As low as possible, the voltage source of the clock divider can be 2.375V. The clock divider consumes 160mA quiescent current and does not react to external factors.

MC100ES6221AER2 Features

52 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

MC100ES6221AER2 Applications

There are a lot of Integrated Device Technology (IDT)
MC100ES6221AER2 Clock Buffers & Drivers applications.

High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
Computing
Medical imaging
