Renesas MC100ES6220AE

Manufacturer No:

MC100ES6220AE

Manufacturer:

Renesas

Package:

TQFP

Description:

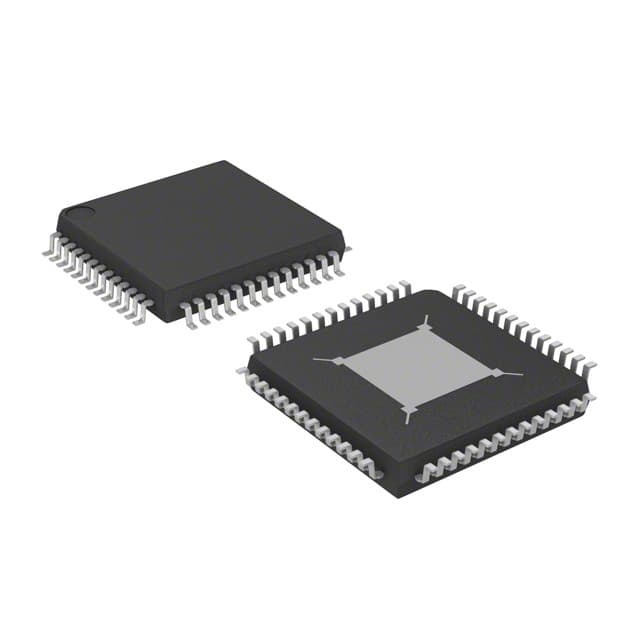

2 Circuit 1GHz 2.5V Clock Buffer QUAD 52 Pins TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC100ES6220AE information

Renesas MC100ES6220AE technical specifications, attributes, parameters and parts with similar specifications to Renesas MC100ES6220AE.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
52

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
52

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Technology
ECL

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
2.5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
52

Number of Outputs
40

Number of Circuits
2

Min Supply Voltage
2.375V

Propagation Delay
550 ps

Quiescent Current
130mA

Frequency (Max)
1GHz

Family
100E

Input
ECL

Logic IC Type
LOW SKEW CLOCK DRIVER

Max I(ol)
0.005 A

Prop. Delay@Nom-Sup
0.5 ns

Max Duty Cycle
53.5 %

Duty Cycle (Max)
53.5 %

fmax-Min
1000 MHz

Same Edge Skew-Max (tskwd)
0.13 ns

Length
10mm

Height Seated (Max)
1.7mm

Width
10mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas MC100ES6220AE.

Datasheets:

integrateddevicetechnology-mc100es6220ae-datasheets-9949.pdf

MC100ES6220AE Overview

There is a case available for the cut smart buffer in TQFP. For normal operation, 1GHz is the maximum value. It has 52 terminations in it, which means that it is terminated. Supply voltages of 2.5V are capable of achieving high efficiency. It has been positioned in the way of Surface Mount. There are 52 pins on the clock buffer. During operation, 52 pins are used. I have enclosed this circuit clock in Clock Drivers for your convenience. The clock switch operates at a minimum working temperature of 0°C in order to maintain reliability. It is possible to achieve stable operation by setting the maximum operating temperature to 70°C. A member of the 100E family, this clock buffer is a digital camera. The circuit uses a logic IC with a value of LOW SKEW CLOCK DRIVER as the input. As a default, it is set to output 40. A maximum supply voltage of 3.465VV can be applied to it. Depending on the type of source voltage, it can run with a voltage as low as 2.375V. The clock divider consumes 130mA quiescent current, and it is unaffected by external factors.

MC100ES6220AE Features

52 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

MC100ES6220AE Applications

There are a lot of Integrated Device Technology (IDT)
MC100ES6220AE Clock Buffers & Drivers applications.

Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
