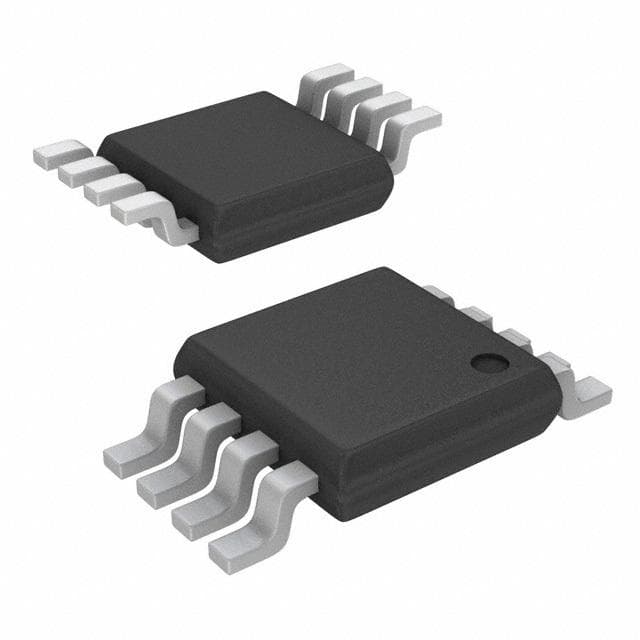

Renesas MC100ES6011EJ

Manufacturer No:

MC100ES6011EJ

Manufacturer:

Renesas

Package:

TSSOP

Description:

1 Circuit 3GHz 2.5V Clock Buffer DUAL 8 Pins TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC100ES6011EJ information

Renesas MC100ES6011EJ technical specifications, attributes, parameters and parts with similar specifications to Renesas MC100ES6011EJ.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
8

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Technology
ECL

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.65mm

Pin Count
8

Number of Outputs
4

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.8V

Min Supply Voltage
2.375V

Propagation Delay
360 ps

Frequency (Max)
3GHz

Input
ECL

Logic IC Type
LOW SKEW CLOCK DRIVER

Prop. Delay@Nom-Sup
0.36 ns

Same Edge Skew-Max (tskwd)
0.02 ns

Length
3mm

Width
3mm

Thickness
970?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas MC100ES6011EJ.

Datasheets:

integrateddevicetechnology-mc100es6011ej-datasheets-8308.pdf

MC100ES6011EJ Overview

The clock divider is available in TSSOP case. It is normal to operate with a value of 3GHz. A total of 8 terminations are present. Supply voltages of 2.5V enable high efficiency. This item is positioned in the way of Surface Mount. There is a pin count of 8 on timeing clock. The 8 pins are used for operation. The cut smart buffer you are looking for is contained within Clock Drivers. A minimum working temperature of -40°C is required to maintain its reliability. 85°C is the maximum operating temperature required for stable operation. A logic IC with a value of LOW SKEW CLOCK DRIVER is used. As a default, it outputs 4. It is capable of handling a maximum supply voltage of 3.8VV. With a source voltage of 2.375V, it is possible to achieve optimal results.

MC100ES6011EJ Features

8 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

MC100ES6011EJ Applications

There are a lot of Integrated Device Technology (IDT)
MC100ES6011EJ Clock Buffers & Drivers applications.

Machine made
Clock signal duplication
Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
