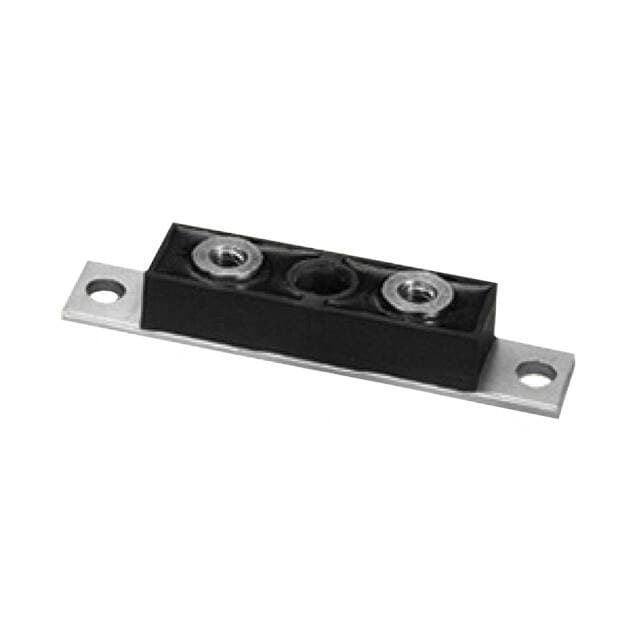

GeneSiC Semiconductor MBRF50035

Manufacturer No:

MBRF50035

Manufacturer:

GeneSiC Semiconductor

Package:

TO-244AB

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~150°C 250A 35V-DC 2-Element TO-244AB Chassis Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MBRF50035 information

GeneSiC Semiconductor MBRF50035 technical specifications, attributes, parameters and parts with similar specifications to GeneSiC Semiconductor MBRF50035.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
TO-244AB

Diode Element Material
SILICON

Packaging
Bulk

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

HTS Code
8541.10.00.80

Terminal Position
UPPER

Terminal Form
UNSPECIFIED

JESD-30 Code
R-PUFM-X2

Operating Temperature (Max)
150°C

Number of Elements
2

Element Configuration
Common Cathode

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
1mA @ 35V

Voltage - Forward (Vf) (Max) @ If
750mV @ 250A

Forward Current
500A

Operating Temperature - Junction
-55°C~150°C

Application
POWER

Average Rectified Current
250A

Number of Phases
1

Peak Reverse Current
1A

Max Repetitive Reverse Voltage (Vrrm)
35V

Diode Configuration
1 Pair Common Cathode

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for GeneSiC Semiconductor MBRF50035.

MBRF50035 Overview

The device operates when the forward voltage is set to 500A.Typical devices like this one are powered by reverse voltage peaks of 1A.

MBRF50035 Features

a peak voltage of 1A
a reverse voltage peak of 1A

MBRF50035 Applications

There are a lot of GeneSiC Semiconductor
MBRF50035 applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
