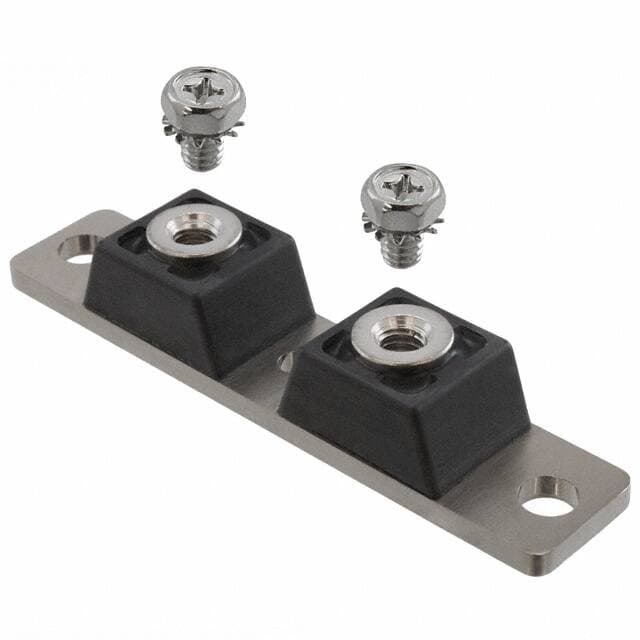

GeneSiC Semiconductor MBR60040CT

Manufacturer No:

MBR60040CT

Manufacturer:

GeneSiC Semiconductor

Package:

Twin Tower

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~150°C 600A 40V-DC 2-Element Twin Tower Chassis Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MBR60040CT information

GeneSiC Semiconductor MBR60040CT technical specifications, attributes, parameters and parts with similar specifications to GeneSiC Semiconductor MBR60040CT.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time
6 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
Twin Tower

Diode Element Material
SILICON

Packaging
Bulk

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

HTS Code
8541.10.00.80

Terminal Position
UPPER

Terminal Form
UNSPECIFIED

JESD-30 Code
R-PUFM-X2

Number of Elements
2

Element Configuration
Common Cathode

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
1mA @ 20V

Forward Current
600A

Max Reverse Leakage Current
1?A

Operating Temperature - Junction
-55°C~150°C

Max Surge Current
4kA

Output Current-Max
300A

Application
POWER

Current - Average Rectified (Io)
300A

Max Reverse Voltage (DC)
40V

Average Rectified Current
600A

Number of Phases
1

Peak Reverse Current
1A

Max Repetitive Reverse Voltage (Vrrm)
40V

Diode Configuration
1 Pair Common Cathode

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for GeneSiC Semiconductor MBR60040CT.

MBR60040CT Overview

The maximum output voltage is 300A.Keeping the surge current under 4kA and preventing it from exceeding it should be the rule.Devices that have a forward voltage of 600A will operate.The reverse voltage peak of this device is 1A.The maximum reverse leakage current from a semiconductor device when reverse biased is 1?A.

MBR60040CT Features

a maximum output voltage of 300A
a peak voltage of 1A
a reverse voltage peak of 1A

MBR60040CT Applications

There are a lot of GeneSiC Semiconductor
MBR60040CT applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
