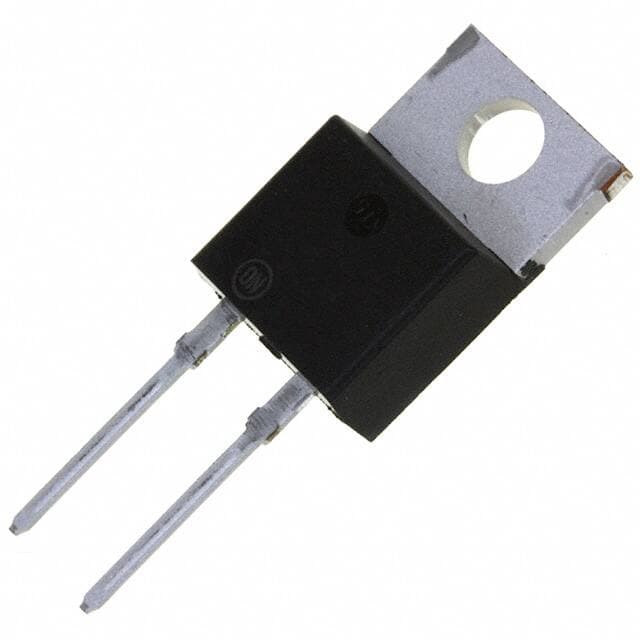

ON Semiconductor MBR1045

Manufacturer No:

MBR1045

Manufacturer:

ON Semiconductor

Package:

TO-220-2

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 840mV @ 20A -65°C~175°C 100?A @ 45V Tube TO-220-2 Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MBR1045 information

ON Semiconductor MBR1045 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MBR1045.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-2

Number of Pins
2

Supplier Device Package
TO-220-2

Weight
2.16g

Packaging
Tube

Series
SWITCHMODE?

Published
2008

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
150°C

Min Operating Temperature
-65°C

Voltage - Rated DC
45V

Current Rating
1A

Base Part Number
MBR1045

Polarity
Standard

Element Configuration
Single

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
100?A @ 45V

Output Current
10A

Voltage - Forward (Vf) (Max) @ If
840mV @ 20A

Forward Current
10A

Operating Temperature - Junction
-65°C~175°C

Max Surge Current
150A

Voltage - DC Reverse (Vr) (Max)
45V

Current - Average Rectified (Io)
10A

Forward Voltage
840mV

Max Reverse Voltage (DC)
45V

Average Rectified Current
10A

Peak Reverse Current
100?A

Max Repetitive Reverse Voltage (Vrrm)
45V

Peak Non-Repetitive Surge Current
150A

Max Forward Surge Current (Ifsm)
150A

Height
8.89mm

Length
10.29mm

Width
4.7mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor MBR1045.

MBR1045 Overview

100?A volts is the maximum reverse leakage current of this device.In this device, there is an average rectified current of 10A volts.Forward current may not exceed 10A.1A is its maximum current rating, which is the maximum current that a fuse can handle without deteriorating.This is the maximum amount of 150A surge current that can be used.As the data chart indicates, the peak reverse is 100?A.

MBR1045 Features

a maximal reverse leakage current of 100?A volts
an average rectified current of 10A volts
a current rating of 1A
the peak reverse is 100?A

MBR1045 Applications

There are a lot of ON Semiconductor
MBR1045 applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
