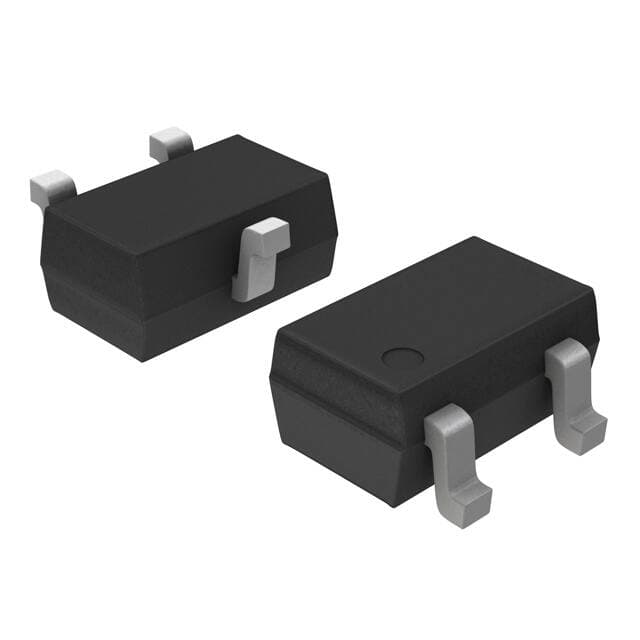

ONSEMI MAX810SQ293D3T1G

Manufacturer No:

MAX810SQ293D3T1G

Manufacturer:

ONSEMI

Package:

SC-70, SOT-323

Description:

3.3V 3 Terminals 3-Pin MAX810 Voltage supervisor 1 Channels Min 1.2V Max 5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX810SQ293D3T1G information

ONSEMI MAX810SQ293D3T1G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MAX810SQ293D3T1G.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
11 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SC-70, SOT-323

Number of Pins
3

Operating Temperature
-40°C~105°C TJ

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Type
Simple Reset/Power-On Reset

Terminal Finish
Tin (Sn)

Subcategory
Power Management Circuits

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Output
Push-Pull, Totem Pole

Pin Count
3

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
1.2V

Operating Supply Current
800nA

Nominal Supply Current
2.5?A

Adjustable Threshold
NO

Watchdog Timer
No

Reset
Active High

Number of Voltages Monitored
1

Reset Timeout
100ms Minimum

Halogen Free
Halogen Free

Supply Current-Max (Isup)
0.0025mA

Min Reset Threshold Voltage
2.89V

Max Reset Threshold Voltage
2.96V

Threshold Voltage
+2.93V

Undervoltage Threshold
2.93V

Overvoltage Threshold
2.96V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI MAX810SQ293D3T1G.

Datasheets:

onsemiconductor-max809sq263t1g-datasheets-1793.pdf

PCN Packaging:

onsemiconductor-esd8011mut5g-pcnpackaging-0098.pdf

MAX810SQ293D3T1G Overview

As you can see, this power management is mounted through 3 terminals. There is a Tape & Reel (TR)-packaging method applied to IC management. To assist you, this IC power includes 1 functions. There are 1 channels available on this supervisor, and each channel has a different function. To assist you, this PMIC includes SC-70, SOT-323 functions. It is a IC power that shares many benefits with other products from the Simple Reset/Power-On Reset line. When 3.3V is applied to the power ic, it conducts. When 1 is applied to the power ic, it conducts. The mount is attached to Surface Mount. In this case, this PMIC chip can be sub-categorized as a Power Management Circuits chip. It has a total of 3 pins that are attached to IC management. This power management has 3 pins. Supply voltage (Vsup) should be at least 1.2V for this power management. During this IC power, the maximum supply voltage (Vsup) should not exceed 5.5V volts. A Surface Mount mounting type is recommended. Temperature setting for the supervisors should be -40°C~105°C TJ. As a result of this supervisor's operation, the output voltage is Push-Pull, Totem Pole. There is a 800nA supply current present in the power management. A similar IC managements number of the manufacturer can always be found by using MAX810, the base power ics number.

MAX810SQ293D3T1G Features

Simple Reset/Power-On Reset type
Minimum supply voltage of 1.2V
800nA operating supply current

MAX810SQ293D3T1G Applications

There are a lot of ON Semiconductor
MAX810SQ293D3T1G Voltage Supervisors applications.

emergency room
Medical-specific isolation transformer
Medical-specific insulation monitor
Transformer load monitoring equipment
External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
Magnetic resonance imaging
Stable power system
