Rochester MAX6101EUR-T

Manufacturer No:

MAX6101EUR-T

Manufacturer:

Rochester

Package:

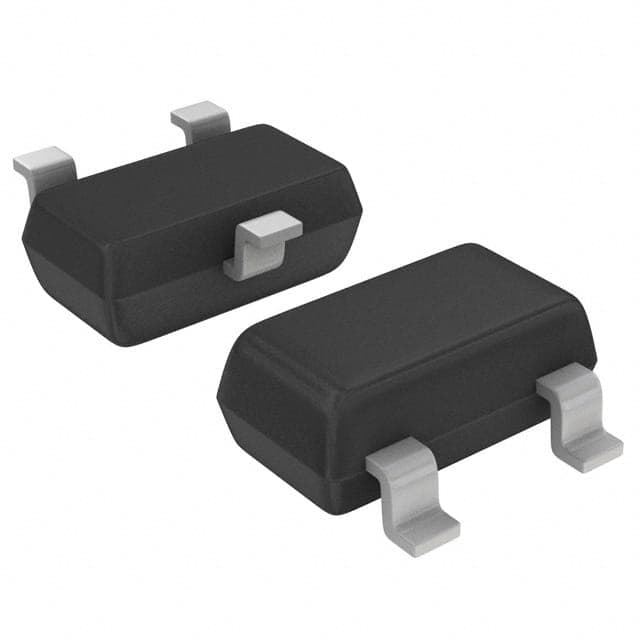

TO-236-3, SC-59, SOT-23-3

Description:

-40°C~85°C TA Fixed 0.95mm PMIC 5V TO-236-3, SC-59, SOT-23-3

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX6101EUR-T information

Rochester MAX6101EUR-T technical specifications, attributes, parameters and parts with similar specifications to Rochester MAX6101EUR-T.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
TO-236-3, SC-59, SOT-23-3

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Tolerance
±0.4%

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

Temperature Coefficient
75ppm/°C

Terminal Finish
TIN LEAD

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.95mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
3

JESD-30 Code
R-PDSO-G3

Number of Outputs
1

Output Voltage
1.25V

Supply Voltage-Max (Vsup)
12.6V

Supply Voltage-Min (Vsup)
2.5V

Trim/Adjustable Output
NO

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Voltage - Input
2.5V~12.6V

Current - Output
5mA

Current - Supply
125?A

Voltage - Output (Min/Fixed)
1.25V

Reference Type
Series

Output Voltage-Max
1.255V

Temp Coef of Voltage-Max
75 ppm/°C

Noise - 0.1Hz to 10Hz
13?Vp-p

Noise - 10Hz to 10kHz
15?Vrms

Length
2.92mm

Height Seated (Max)
1.12mm

Width
1.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester MAX6101EUR-T.

Datasheets:

rochesterelectronicsllc-max6104eurt-datasheets-9739.pdf

MAX6101EUR-T Overview

A handy package called TO-236-3, SC-59, SOT-23-3 is used.It is used as a voltage reference and is controlled by Series.The handy Tape & Reel (TR) variable is used in this program.The 3 terminations have a variety of functions.A precise voltage reference must have a tolerance of ±0.4%.The reference voltage is coupled to an analog IC THREE TERMINAL VOLTAGE REFERENCE.On the basis of the test statistics, 1.25V voltage is output.The output of 1 is sufficient.Input is taken from a Fixed form.3 pins are included in the voltage reference ic.Temperatures should not rise above 245 during reflow soldering.For PCB designs that require high precision, Surface Mount is available.Working within -40°C~85°C TA is my area of expertise.5mA input applications can use the reference voltage.There is a requirement for a 5V supply voltage.Supplying it with 2.5V volts is the minimum voltage required.A 2.5V~12.6V voltage input is common with the voltage reference ic.The voltage generated is fixed/minimum at 1.25V.A 125?A-shaped supply current is used to operate the voltage reference ic.A voltage reference circuit's maximum voltage output is tested 1.255V.

MAX6101EUR-T Features

±0.4% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 245
Current Supply: 125?A

MAX6101EUR-T Applications

There are a lot of Rochester Electronics, LLC
MAX6101EUR-T Voltage Reference applications.

Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
