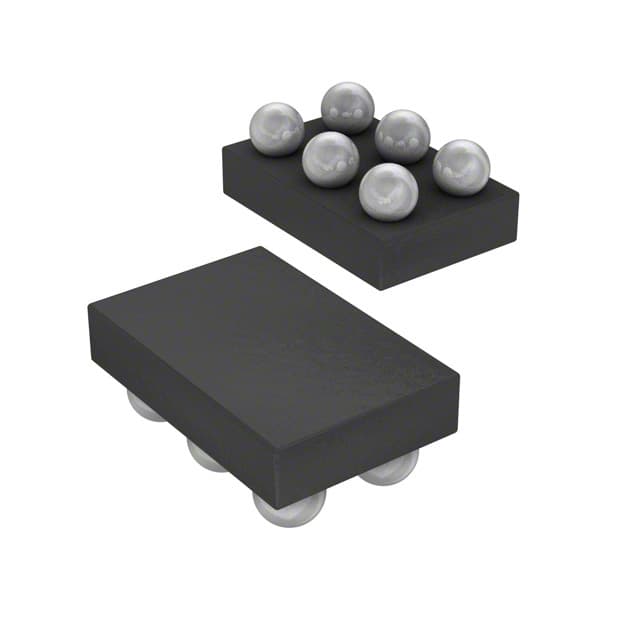

ADI MAX6071ANT25+T

Manufacturer No:

MAX6071ANT25+T

Manufacturer:

ADI

Package:

6-XFBGA, WLBGA

Description:

-40°C~125°C TA Fixed 0.35mm PMIC MAX6071 5V 6-XFBGA, WLBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX6071ANT25+T information

ADI MAX6071ANT25+T technical specifications, attributes, parameters and parts with similar specifications to ADI MAX6071ANT25+T.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
6-XFBGA, WLBGA

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Published
2016

Tolerance
±0.1%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Temperature Coefficient
6ppm/°C

HTS Code
8542.39.00.01

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.35mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MAX6071

JESD-30 Code
R-PBGA-B6

Output Voltage
2.5V

Output Type
Fixed

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.7V

Trim/Adjustable Output
NO

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Voltage - Input
2.8V~5.5V

Current - Output
10mA

Current - Supply
300?A

Voltage - Output (Min/Fixed)
2.5V

Reference Type
Series

Output Voltage-Max
2.5025V

Temp Coef of Voltage-Max
10 ppm/°C

Noise - 0.1Hz to 10Hz
4.8?Vp-p

Noise - 10Hz to 10kHz
6?Vrms

Length
1.415mm

Height Seated (Max)
0.5mm

Width
0.78mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI MAX6071ANT25+T.

Datasheets:

maximintegrated-max6071baut30t-datasheets-4447.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

MAX6071ANT25+T Overview

A handy 6-XFBGA, WLBGA package is used.Uses the handy Series package.The handy Tape & Reel (TR) package is used in this program.Various functions terminate at 6.Voltage reference with ±0.1% tolerance.The reference voltage is coupled with an analog IC THREE TERMINAL VOLTAGE REFERENCE.According to the test statistics, it produces 2.5V voltage.In this case, it is sufficient to generate 1 outputs.The user can enter input on the Fixed form.The temperature should be kept below 260 during the reflow soldering procedure.For PCB designs requiring high performance, Surface Mount is available.I am qualified to work within -40°C~125°C TA.Search "MAX6071" for other relevant parts.Applications with 10mA input are suitable for the reference voltage.The supply voltage must be 5V.To supply it, a voltage of 2.7V is required.In most cases, the voltage reference ic can provide a voltage input of 2.8V~5.5V.There is a fixed/minimum voltage of 2.5V.During operation, it uses a current of 300?A as its supply current.2.5025V is the highest voltage output from the voltage reference ic.

MAX6071ANT25+T Features

±0.1% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Current Supply: 300?A

MAX6071ANT25+T Applications

There are a lot of Maxim Integrated
MAX6071ANT25+T Voltage Reference applications.

Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
