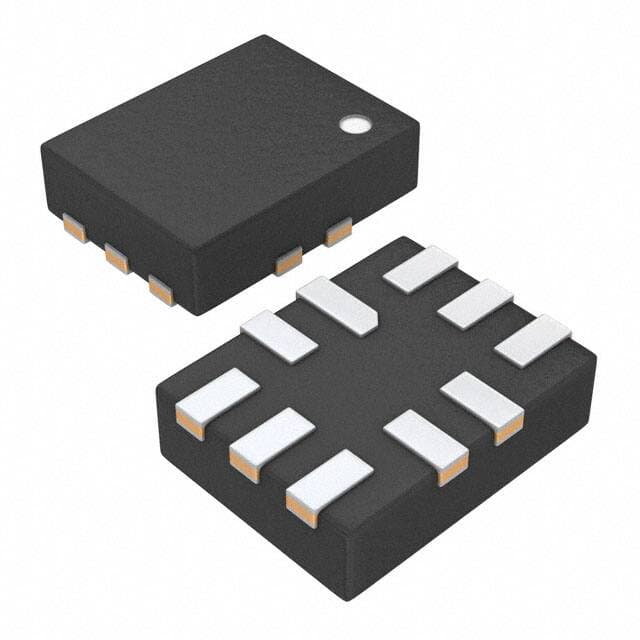

ADI MAX4995CAVB+

Manufacturer No:

MAX4995CAVB+

Manufacturer:

ADI

Package:

10-UFQFN

Description:

10 Terminations 3.3V 10 Pin MAX4995 Current regulator 1 Outputs -40°C~125°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX4995CAVB+ information

ADI MAX4995CAVB+ technical specifications, attributes, parameters and parts with similar specifications to ADI MAX4995CAVB+.

Type
Parameter

Package / Case
10-UFQFN

Mounting Type
Surface Mount

Mount
Surface Mount

Number of Pins
10

Published
2010

Packaging
Tube

Operating Temperature
-40°C~125°C

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Subcategory
Power Management Circuits

Technology
BICMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
225

Supply Voltage
3.3V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MAX4995

Function
Current Switch

Qualification Status
Not Qualified

Max Output Current
600mA

Supply Voltage-Max (Vsup)
5.5V

Analog IC - Other Type
ANALOG CIRCUIT

Voltage - Input
1.7V~5.5V

Current - Output
Adjustable

Accuracy
±10%

Supply Current-Max (Isup)
0.3mA

Height Seated (Max)
0.55mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI MAX4995CAVB+.

Datasheets:

maximintegrated-max5858aecmd-datasheets-5095.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

MAX4995CAVB+ Overview

The package includes buck boost converter in version Tube.In this case, voltage regulator has been packaged in the same way as 10-UFQFN.The current regulator is mounted by Surface Mount.In order to maintain a safe operating environment, the temperature cannot exceed -40°C~125°C.As far as input voltage goes, current regulator supports the value of 1.7V~5.5V.10 terminations are a standard way of terminating transmission lines, in which a voltage regulator is used that matches the characteristic impedance of the line in order to terminate the transmission line.In the MAX4995 family, current regulator is a member.In computers and other communication constant current regulators, 10 pins are pronged contacts that form part of a signal interface.The current regulator is mounted on the Surface Mount axis.Providing the constant current is powered by a 3.3VV power source, the constant current should be able to function.The output current of Adjustable makes it a very flexible power converter when it comes to design.This power converter utiliANALOG CIRCUITes an analog integrated circuit (IC) called ANALOG CIRCUIT.There is a part called Power Management Circuits which contains all of these current regulations.As soon as the maximum supply current (Isup) supplied for current regulation's operation reaches 0.3mA, it will cease to function.When the maximum supply voltage (Vsup) applied for its operation reaches 5.5V, the boost converter is considered to be operational.With a maximum output current of 600mA, it offers maximum voltage regulator's design flexibility.There is a 1 output configured.

MAX4995CAVB+ Features

Tube package
MAX4995 family
1 output

MAX4995CAVB+ Applications

There are a lot of Maxim Integrated
MAX4995CAVB+ Current Regulation/Managements applications.

DC motor control
Over-current protection
Power supply current measurement
Level translating
Over current monitor
Power management
Programmable current source
Automotive current measurement
Industrial applications current measurement
Battery management
