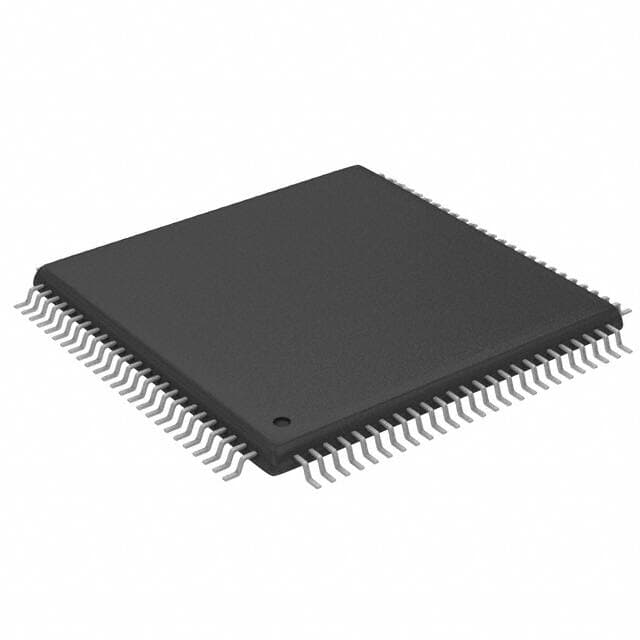

ADI MAX32631ICQ+
Manufacturer No:
MAX32631ICQ+
Manufacturer:
Package:
100-TQFP Exposed Pad
Description:
2MB 2M x 8 FLASH ARM® Cortex®-M4F 32-Bit Microcontroller DARWIN Series MAX32631 96MHz 1.2V 100-TQFP Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MAX32631ICQ+ information
ADI MAX32631ICQ+ technical specifications, attributes, parameters and parts with similar specifications to ADI MAX32631ICQ+.
- Type
- Parameter
- Factory Lead Time
- 11 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 100-TQFP Exposed Pad
- Surface Mount
- YES
- Operating Temperature
- -20°C~85°C TA
- Packaging
- Tray
- Series
- DARWIN
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 100
- Additional Feature
- ALSO REQUIRES 1.8V NOM SUPPLY
- HTS Code
- 8542.31.00.01
- Technology
- CMOS
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Supply Voltage
- 1.2V
- Terminal Pitch
- 0.5mm
- Frequency
- 96MHz
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- MAX32631
- JESD-30 Code
- S-PQFP-G100
- Supply Voltage-Max (Vsup)
- 1.26V
- Interface
- I2C, SPI, UART, USART, USB
- Memory Size
- 2MB
- Oscillator Type
- Internal
- Number of I/O
- 66
- RAM Size
- 512K x 8
- Voltage - Supply (Vcc/Vdd)
- 1.14V~3.6V
- uPs/uCs/Peripheral ICs Type
- MICROCONTROLLER, RISC
- Core Processor
- ARM® Cortex®-M4F
- Peripherals
- Brown-out Detect/Reset, POR, PWM, TPU, WDT
- Program Memory Type
- FLASH
- Core Size
- 32-Bit
- Program Memory Size
- 2MB 2M x 8
- Connectivity
- 1-Wire, I2C, SPI, UART/USART, USB
- Data Converter
- A/D 4x10b
- Has ADC
- YES
- DMA Channels
- YES
- PWM Channels
- YES
- DAC Channels
- NO
- ROM (words)
- 2097152
- Core Architecture
- ARM
- On Chip Program ROM Width
- 8
- Length
- 14mm
- Height Seated (Max)
- 1.2mm
Download datasheets and manufacturer documentation for ADI MAX32631ICQ+.
Datasheets:
Other Related Documents:
ConflictMineralStatement:
MAX32631ICQ+ Overview
The package is in 100-TQFP Exposed Pad format. The MCU has 66 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 32-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -20°C~85°C TA. The electrical component that you are looking at belongs to the DARWIN series of components. Microcontroller has abundant program memory size of 2MB 2M x 8. The ARM® Cortex®-M4F Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER, RISC uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 100 of terminations. There is an output of 1.2V volts from the Microcontroller chip. A total of YES DMA channels are available on MCU chip. This MCU is implemented with 2MB memory. MAX32631 serves as a base part number to find alternatives. It exhibits good efficiency when it operates at a frequency of 96MHz and it is able to operate at a high frequency. It is possible for the device to work with the motor using the PWM channel YES. There is a ARM core architecture integrated into it. In addition, there are several other features that can be found in the software, including ALSO REQUIRES 1.8V NOM SUPPLY.
MAX32631ICQ+ Features
100-TQFP Exposed Pad package
Mounting type of Surface Mount
MAX32631ICQ+ Applications
There are a lot of Maxim Integrated
MAX32631ICQ+ Microcontroller applications.
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
- DVD\DV\MP3 players
