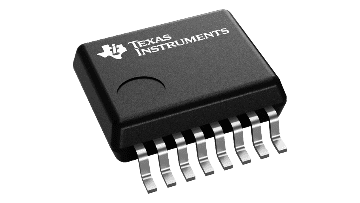

Texas Instruments MAX3227IDBRG4

Manufacturer No:

MAX3227IDBRG4

Manufacturer:

Texas Instruments

Package:

Description:

3- to 5.5-V single channel 1Mbps RS-232 line driver/receiver with +/-15-kV ESD protection

Quantity:

In Stock :9844

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Sun, May 10 - Mon, May 11, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

MAX3227IDBRG4 Information

Texas Instruments MAX3227IDBRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments MAX3227IDBRG4.

Type
Parameter

Drivers per package
1

Receivers per package
1

Logic voltage (min) (V)
3.3

Data rate (max) (Mbps)
1

Main supply voltage (nom) (V)
3.3, 5

Features
Auto-Powerdown Plus

ESD HBM (kV)
15

Rating
Catalog

Operating temperature range (°C)
-40 to 85

Vout (typ) (V)
5.4

Type
Parameter

Package
SSOP (DB)

Pins
16

Size
48.36 mm² 6.2 x 7.8

REACH Status
—

RoHS Status

Download datasheets and manufacturer documentation for Texas Instruments MAX3227IDBRG4.

Data sheet:

f16106c7432a7ff01744c7e01880924d.pdf

The MAX3227 consists of one line driver, one line receiver, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. This device operates at data-signaling rates of 1 Mbit/s in normal operating mode and a maximum of 30-V/µs driver output slew rate. This device also features a logic-level output (READY) that asserts when the charge pump is regulating and the device is ready to begin transmitting.

The MAX3227 achieves a 1-µA supply current using the auto-powerdown plus feature. This device automatically enters a low-power powerdown mode when the RS-232 cable is disconnected or the drivers of the connected peripherals are inactive for more than 30 s. They turn on again when they sense a valid transition at any driver or receiver input. Auto-powerdown saves power without changes to the existing BIOS or operating system.

The MAX3227C is characterized for operation from 0°C to 70°C. The MAX3227I is characterized for operation from -40°C to 85°C.

Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
Operates With 3-V to 5.5-V V_CC Supply
Operates at Least 1 Mbit/s
Low Standby Current . . . 1 µA Typ
External Capacitors . . . 4 × 0.1 µF
Accepts 5-V Logic Input With 3.3-V Supply
Designed to Be Interchangeable With Maxim™: MAX3227
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection for RS-232 I/O Pins
- ±15 kV - Human-Body Model
- ±8 kV - IEC61000-4-2, Contact Discharge
- ±8 kV - IEC61000-4-2, Air-Gap Discharge
Auto-Powerdown Plus Feature Automatically Disables Drivers for Power Savings
Packaged in Plastic Shrink Small-Outline Package
APPLICATIONS
- Battery-Powered, Hand-Held, and Portable Equipment
- PDAs and Palmtop PCs
- Notebooks, Sub-Notebooks, and Laptops
- Digital Cameras
- Mobile Phones and Wireless Devices
