ADI MAX20096ATJ/VY+T

Manufacturer No:

MAX20096ATJ/VY+T

Manufacturer:

ADI

Package:

32-WFQFN Exposed Pad

Description:

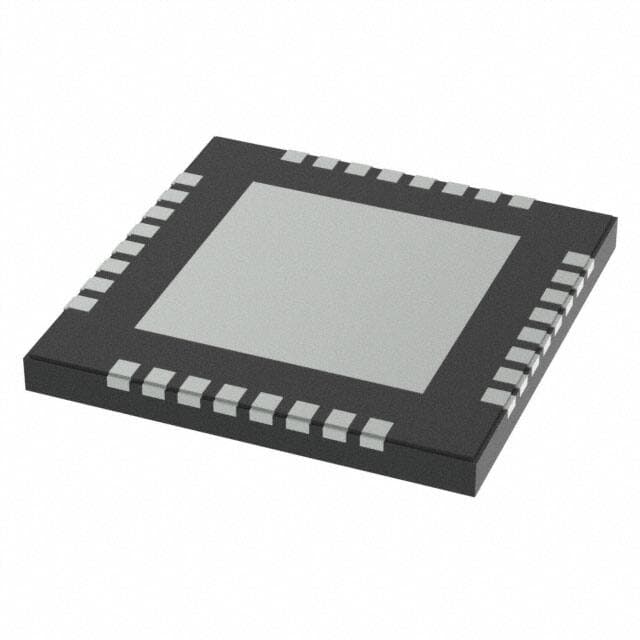

PMIC Automotive, AEC-Q100 Series 1MHz 32-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX20096ATJ/VY+T information

ADI MAX20096ATJ/VY+T technical specifications, attributes, parameters and parts with similar specifications to ADI MAX20096ATJ/VY+T.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount, Wettable Flank

Package / Case
32-WFQFN Exposed Pad

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
DC DC Controller

Applications
Automotive, Lighting

Frequency
1MHz

Number of Outputs
2

Topology
Step-Down (Buck)

Internal Switch(s)
No

Dimming
Analog, PWM

Voltage - Supply (Max)
65V

Voltage - Supply (Min)
4.5V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI MAX20096ATJ/VY+T.

Datasheets:

maximintegrated-max20096atjvy-datasheets-0048.pdf

MAX20096ATJ/VY+T Overview

In order to save board space, the led driver uses the 32-WFQFN Exposed Pad package. For the design of this LED driver, 2 outputs are used.The mounting method is Surface Mount, Wettable Flank.As a DC DC Controller, it has high efficiency and reliability.The led light driver operates normally at -40°C~125°C. The benefits it provides to Automotive, Lighting are considerable.In this case, the frequency is 1MHz.A voltage supply less than 4.5V will cause undetermined failures.It is designed to provide a supply voltage of 65V at its maximum.LED drivers from the Automotive, AEC-Q100 series are essential components for a wide variety of products.
