ADI MAX20034ATIS/VY+

Manufacturer No:

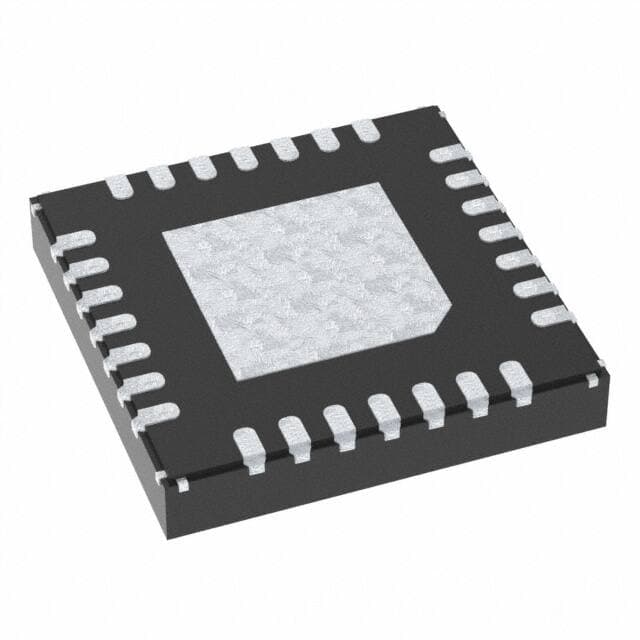

MAX20034ATIS/VY+

Manufacturer:

ADI

Package:

28-WFQFN Exposed Pad

Description:

28 Terminals 3.5V~36V DC to DC converter IC DUAL SWITCHING CONTROLLER 2 Outputs 220kHz~2.2MHz Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX20034ATIS/VY+ information

ADI MAX20034ATIS/VY+ technical specifications, attributes, parameters and parts with similar specifications to ADI MAX20034ATIS/VY+.

Type
Parameter

Mounting Type
Surface Mount, Wettable Flank

Package / Case
28-WFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~125°C

Series
Automotive, AEC-Q100

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Additional Feature
ALSO HAS 3.3V FIXED OUTPUT VOLTAGE

Technology
BICMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Function
Step-Down

Number of Outputs
2

Output Voltage
5V

Output Type
Transistor Driver

Input Voltage-Nom
14V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Configuration
Positive

Voltage - Supply (Vcc/Vdd)
3.5V~36V

Control Features
Current Limit, Enable

Topology
Buck

Control Mode
CURRENT-MODE

Frequency - Switching
220kHz~2.2MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Duty Cycle (Max)
99%

Output Phases
1

Length
5mm

Height Seated (Max)
0.8mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI MAX20034ATIS/VY+.

Datasheets:

maximintegrated-max20034atisvy-datasheets-7533.pdf

maximintegrated-max20034atisvy-datasheets-7534.pdf

MAX20034ATIS/VY+ Overview

Capsuled in the 28-WFQFN Exposed Pad package, the switching controller suits most application needs. The dc motor controller is adquate to generate for 2 outputs. It is capable of dealing with Transistor Driver dc switching's output (s). dc switching'sThe supply and operating voltage of the dc control are 3.5V~36V. Qualified to work in a -40°C~125°C dc switcher. This switching controller can switch at 220kHz~2.2MHz. Surface Mount, Wettable Flank makes it suitable for general dc dc regulator. The dcdc regulator features Current Limit, Enable for efficient switching control. The switch converters are connected to a DUAL SWITCHING CONTROLLER analog IC. Terminal (s) of the switching converters are designed at the QUAD position. 28 terminations with a variety of function. To name a few of the control techniques these dc dc converter ics adapt, it includes PULSE WIDTH MODULATION. 14V nominal DC switcher's voltage input. The minimum input voltage of the dc dc voltage regulator should be 3.5V. According to the test statistics, DC regulator outputs 5V voltage. DC to DC voltage regulator has a value of ALSO HAS 3.3V FIXED OUTPUT VOLTAGE to better satisfy the need. It belongs to the Automotive, AEC-Q100 series of dc to dc voltage regulator.
