ADI MAX1960EEP+T
Manufacturer No:
MAX1960EEP+T
Manufacturer:
Package:

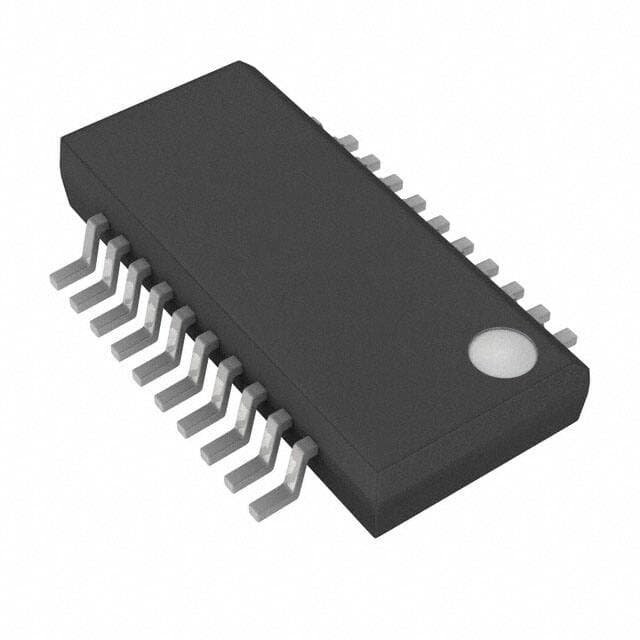

20-SSOP (0.154, 3.90mm Width)
Description:
20 Terminals 2.35V~5.5V MAX1960 DC to DC converter IC SWITCHING CONTROLLER 1 Outputs 500kHz 1MHz Transistor Driver
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MAX1960EEP+T information
ADI MAX1960EEP+T technical specifications, attributes, parameters and parts with similar specifications to ADI MAX1960EEP+T.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 20-SSOP (0.154, 3.90mm Width)
- Surface Mount
- YES
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Published
- 2005
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 20
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Subcategory
- Switching Regulator or Controllers
- Technology
- BICMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Terminal Pitch
- 0.635mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- MAX1960
- JESD-30 Code
- R-PDSO-G20
- Function
- Step-Down
- Qualification Status
- Not Qualified
- Output Type
- Transistor Driver
- Input Voltage-Nom
- 3.3V
- Analog IC - Other Type
- SWITCHING CONTROLLER
- Output Configuration
- Positive
- Voltage - Supply (Vcc/Vdd)
- 2.35V~5.5V
- Control Features
- Current Limit, Enable, Frequency Control
- Input Voltage (Min)
- 2.35V
- Topology
- Buck
- Control Mode
- VOLTAGE-MODE
- Frequency - Switching
- 500kHz 1MHz
- Input Voltage (Max)
- 5.5V
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Switcher Configuration
- PUSH-PULL
- Duty Cycle (Max)
- 92%
- Length
- 8.65mm
- Width
- 3.9mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ADI MAX1960EEP+T.
Datasheets:
ConflictMineralStatement:
MAX1960EEP+T Overview
Capsuled in the 20-SSOP (0.154, 3.90mm Width) package, the switching controller suits most application needs. The dc motor controller is adquate to generate for 1 outputs. The pmic is packaged in Tape & Reel (TR) solid enclosure. It is capable of dealing with Transistor Driver dc switching's output (s). dc switching'sThe supply and operating voltage of the dc control are 2.35V~5.5V. Qualified to work in a -40°C~85°C TA dc switcher. This switching controller can switch at 500kHz 1MHz. Surface Mount makes it suitable for general dc dc regulator. The dcdc regulator features Current Limit, Enable, Frequency Control for efficient switching control. The switch converters are connected to a SWITCHING CONTROLLER analog IC. Terminal (s) of the switching converters are designed at the DUAL position. 20 terminations with a variety of function. To name a few of the control techniques these dc dc converter ics adapt, it includes PULSE WIDTH MODULATION. 3.3V nominal DC switcher's voltage input. Other relevant dc to dc converter ics can be found by searching "MAX1960". Switching converter is a type of Switching Regulator or Controllers in particular. The minimum input voltage of the dc dc voltage regulator should be 2.35V. It should be fully noted that the dc to dc regulator only accepts 5.5V input voltage at most.
MAX1960EEP+T Features
Transistor Driver Outputs
Switching Frequency: 500kHz 1MHz
Current Limit, Enable, Frequency Control
PULSE WIDTH MODULATION
MAX1960EEP+T Applications
There are a lot of Maxim Integrated
MAX1960EEP+T DC to DC converter applications.
- CNC system
- Servo drive system
- Digital display device
- Linear guide
- Ball screw pair
- Computer application technology
- Network technology
- Automation technology
- CMM
- Various precision measuring instruments
