Manufacturer No:

MAX16004ETP+

Manufacturer:

ADI

Package:

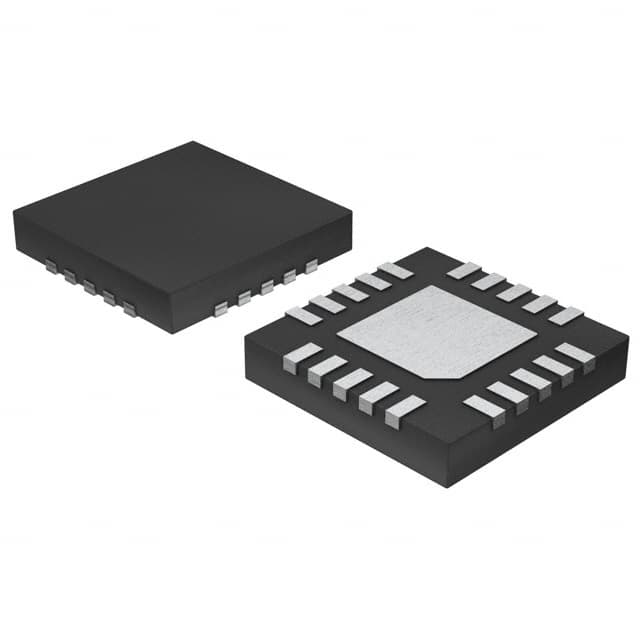

20-WFQFN Exposed Pad

Description:

3.3V 20 Terminals 20-Pin MAX16004 Voltage supervisor 6 Channels Min 1V Max 5.5V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX16004ETP+ information

ADI MAX16004ETP+ technical specifications, attributes, parameters and parts with similar specifications to ADI MAX16004ETP+.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 20-WFQFN Exposed Pad
  • Number of Pins
  • 20
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tube
  • Published
  • 2012
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 20
  • ECCN Code
  • EAR99
  • Type
  • Multi-Voltage Supervisor
  • Terminal Finish
  • Matte Tin (Sn)
  • Additional Feature
  • MANUAL RESET INPUT
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Power Management Circuits
  • Max Power Dissipation
  • 1.355W
  • Technology
  • BICMOS
  • Terminal Position
  • QUAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Base Part Number
  • MAX16004
  • Output
  • Open Drain or Open Collector
  • Pin Count
  • 20
  • Power Supplies
  • 2.5/5V
  • Number of Channels
  • 6
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 1V
  • Operating Supply Current
  • 50?A
  • Adjustable Threshold
  • YES
  • Watchdog Timer
  • Yes
  • Reset
  • Active Low
  • Voltage - Threshold
  • 6 Selectable Threshold Combinations
  • Number of Voltages Monitored
  • 6
  • Reset Timeout
  • Adjustable/Selectable
  • Supply Current-Max (Isup)
  • 0.07mA
  • Length
  • 4mm
  • Height Seated (Max)
  • 0.8mm
  • Width
  • 4mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ADI MAX16004ETP+.

Datasheets:

ConflictMineralStatement:

MAX16004ETP+ Overview


There are 20 terminals connected to this power management, which makes it easy to mount. In terms of packaging, power management follows the Tube model. For your reference, this IC power includes a list of 1 functions. This power managment ic consists of 6 channels, each of which can be used independently. For your reference, this PMIC includes a list of 20-WFQFN Exposed Pad functions. There are a lot of similarities between this IC management and other Multi-Voltage Supervisor products. Specifies a reflow peak temperature of 260 for the package during reflow. IC management conducts in a 3.3V-voltage supply. IC management conducts in a 6-voltage supply. The mount is provided by Surface Mount. Power Management Circuits is a subcategory of this PMIC chip. The total number of pins on this power management is 20. There are 20 pins on the supervisor. In order for this IC power to function, the supply voltage (Vsup) cannot be less than 1V. It is recommended that the maximum supply voltage (Vsup) in this IC power be no more than 5.5V volts. The recommended mounting type is Surface Mount. This power management is the recommended temperature range for the supervisors: -40°C~125°C TA. While in operation, this supervisor has a voltage output of Open Drain or Open Collector. The supply current of the power management is 50?A. Among other features, IC power can be also taken advantage of [0], for instance. To find similar IC managements from the manufacturer, you can always search by MAX16004. The power management must be powered by 2.5/5V volts to function properly.
