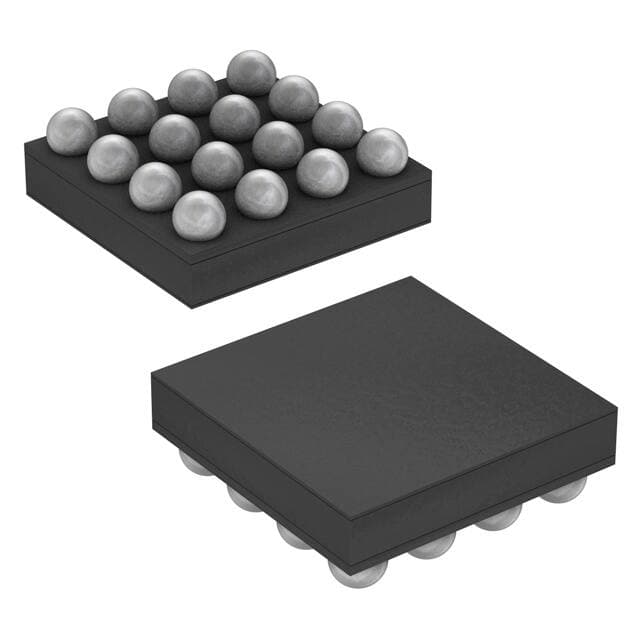

ADI MAX15066EWE+T
Manufacturer No:
MAX15066EWE+T
Manufacturer:
Package:
16-UFBGA, WLCSP
Description:
16 Terminals 4.5V 16-Pin MAX15066 DC DC Voltage Regulator BATTERY CHARGE CONTROLLER 1 Outputs 500kHz Tape & Reel (TR) 16-UFBGA, WLCSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MAX15066EWE+T information
ADI MAX15066EWE+T technical specifications, attributes, parameters and parts with similar specifications to ADI MAX15066EWE+T.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-UFBGA, WLCSP
- Number of Pins
- 16
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Published
- 2012
- JESD-609 Code
- e2
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Subcategory
- Switching Regulator or Controllers
- Technology
- BICMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- MAX15066
- Function
- Step-Down
- Efficiency
- 96 %
- Voltage - Input (Max)
- 16V
- Output Voltage
- 14.4V
- Output Type
- Adjustable
- Max Output Current
- 4A
- Operating Supply Voltage
- 16V
- Voltage - Input (Min)
- 4.5V
- Analog IC - Other Type
- BATTERY CHARGE CONTROLLER
- Output Configuration
- Positive
- Voltage - Output (Min/Fixed)
- 0.606V
- Topology
- Buck
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 500kHz
- Synchronous Rectifier
- Yes
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI MAX15066EWE+T.
Datasheets:
ConflictMineralStatement:
MAX15066EWE+T Overview
This harley voltage regulator utilizes the Tape & Reel (TR) package for optimized performance. There are 16 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is BATTERY CHARGE CONTROLLER. This harley voltage regulator is available in the 16-UFBGA, WLCSP package for the purpose of space saving. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Adjustable output on its output pins. This voltage regulator 12v fits the Surface Mount mounting. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~85°C TA. The switching frequency of this DC-DC switching regulator reaches 500kHz. This voltage regulator is able to operate with the minimal input voltage of 4.5V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 0.606V. Voltage regulator has an input voltage (Max) of 16V. The peak reflow temperature of this regulator amounts to 260 to be essentially indestructible. This voltage regulator is included in the Switching Regulator or Controllers subcategory. This DC/DC regulator belongs to the MAX15066 family. The adjusting voltage regulator's output voltage is maintain at 14.4V. 16 pins are used for switching regulator operation. Voltage regulator's maximal output current reaches 4A A to meet the operation requirements. This DC-DC switching regulator operates from a supply voltage of 16V.
