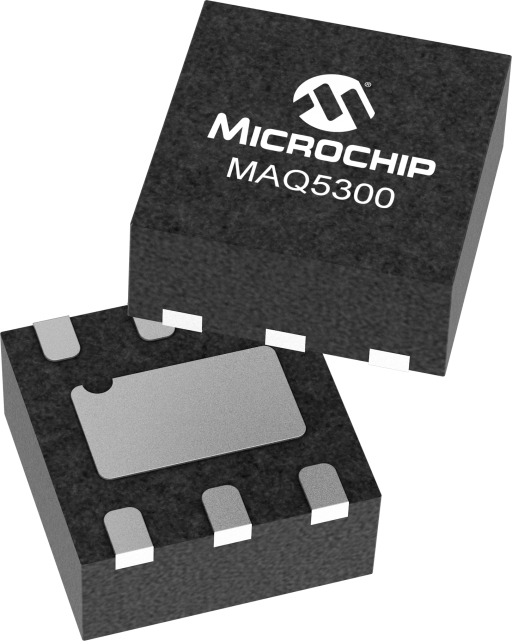

Microchip MAQ5300-3.0YML-TRVAO

Manufacturer No:

MAQ5300-3.0YML-TRVAO

Manufacturer:

Microchip

Package:

6-VDFN Exposed Pad

Description:

Ultra low dropout CMOS regulator (ULDO)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAQ5300-3.0YML-TRVAO information

Microchip MAQ5300-3.0YML-TRVAO technical specifications, attributes, parameters and parts with similar specifications to Microchip MAQ5300-3.0YML-TRVAO.

Type
Parameter

VIN Min V (volt)
2.3

VIN Max V (volt)
5.5

VOUT V (volt)
1.5, 1.8, 2.5, 2.8, 2.85, 3.0, 3.3

IOUT #1 Max mA (milliampere)
300

Rated IOUT Max mA (milliampere)
300

Quiescent Current µA (microampere)
85

Voltage Drop Typ (mV)
100

Reverse Battery
No

Download datasheets and manufacturer documentation for Microchip MAQ5300-3.0YML-TRVAO.

Data Sheets:

e860db5cb7f6d35ad247f0692ce3d569.pdf

The MAQ5300 is an automotive-qualified, ultra-small, ultra low dropout CMOS regulator (ULDO) that is ideal for today's most demanding automotive applications including infotainment, camera module, image sensors, and anywhere PCB space is limited. It offers extremely low dropout voltage, very low output noise and can operate from a 2.3V to 5.5V input while delivering up to 300mA.

The MAQ5300 offers 2% initial accuracy, low ground current (typically 85µA total), thermal shutdown, and current-limit protection. The MAQ5300 can also be put into a zero-off-mode current state, drawing no current when disabled.

The MAQ5300's operating junction temperature range is -40°C to +125°C and it is available in fixed output voltages in a lead-free (RoHS-compliant) 6-pin 2mm x 2mm DFN package.

Small 2mm x 2mm DFN package
Low dropout voltage: 100mV at 300mA
Output noise 120µVRMS
Input voltage range: 2.3V to 5.5V
300mA guaranteed output current
Stable with ceramic output capacitors
Low quiescent current: 85µA total
30µs turn-on time
±2% initial accuracy
±3% over temperature
Thermal shutdown and current-limit protection
