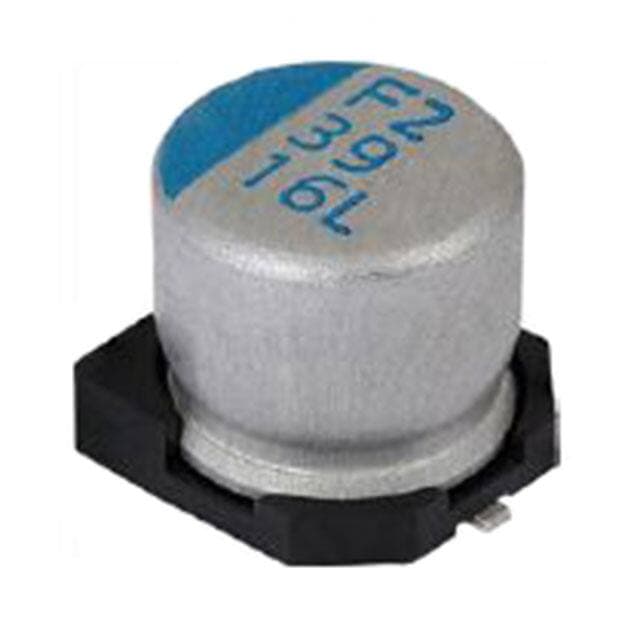

Vishay MAL218197301E3
Vishay MAL218197301E3

Vishay MAL218197301E3

Manufacturer No:

MAL218197301E3

Manufacturer:

Vishay

Package:

Radial, Can - SMD

Description:

100?F ±20% Radial, Can - SMD 0.232 5.90mm Tape & Reel (TR) 181 CPL Surface Mount Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAL218197301E3 information

Vishay MAL218197301E3 technical specifications, attributes, parameters and parts with similar specifications to Vishay MAL218197301E3.

  • Type
  • Parameter
  • Factory Lead Time
  • 24 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Surface Mount Land Size
  • 0.260Lx0.260W 6.60mmx6.60mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • 181 CPL
  • Published
  • 2015
  • Size / Dimension
  • 0.236Dia 6.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Type
  • Polymer
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -55°C
  • Applications
  • General Purpose
  • Voltage - Rated
  • 6.3V
  • Capacitance
  • 100?F
  • Voltage - Rated DC
  • 6.3V
  • Polarity
  • Polar
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Ripple Current
  • 2.8A
  • Life (Hours)
  • 5000 hours
  • Ripple Current @ High Frequency
  • 2.8A @ 100kHz
  • Diameter
  • 5mm
  • Height
  • 5.7mm
  • Height Seated (Max)
  • 0.232 5.90mm
  • Width
  • 5.3mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Vishay MAL218197301E3.

Datasheets:

RohsStatement:

MAL218197301E3 Overview


2.8A @ 100kHz ripple current @ High Frequency is needed to power systems.The value of 22mOhms is supported in terms of impedance.Ideally, the operating temperature should be -55°C~105°C.

MAL218197301E3 Features


2.8A @ 100kHz ripple current on a high frequency
22mOhms is the value of impedance
an operating temperature of -55°C~105°C


MAL218197301E3 Applications


There are a lot of Vishay BC Components
MAL218197301E3 applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
