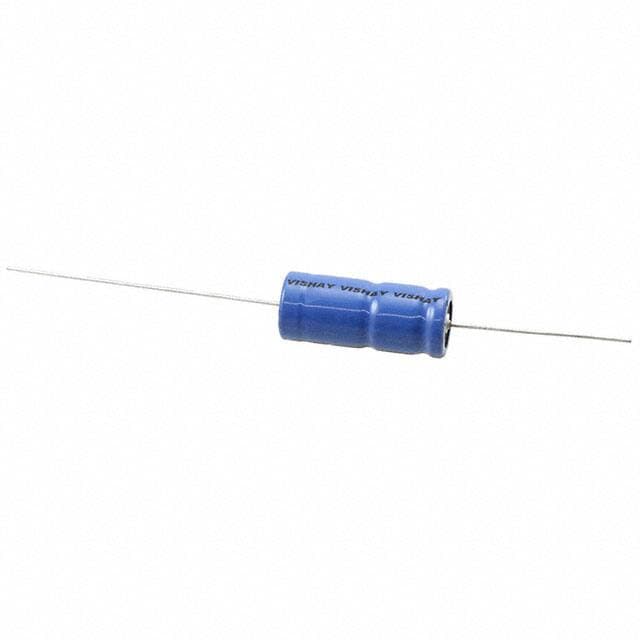

Vishay MAL213831109E3

Manufacturer No:

MAL213831109E3

Manufacturer:

Vishay

Package:

Axial, Can

Description:

138 AML 10?F Capacitor ±20% Tape & Box (TB) Through Hole 51mA 0.248Diax0.500L 6.30mmx12.70mm -40°C~105°C Polar Axial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAL213831109E3 information

Vishay MAL213831109E3 technical specifications, attributes, parameters and parts with similar specifications to Vishay MAL213831109E3.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
PCB, Through Hole

Mounting Type
Through Hole

Package / Case
Axial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~105°C

Packaging
Tape & Box (TB)

Series
138 AML

Published
2011

Size / Dimension
0.248Diax0.500L 6.30mmx12.70mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
Axial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
Automotive

Capacitance
10?F

Voltage - Rated DC
50V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
14Ohm @ 100Hz

Lead Diameter
600 ?m

Voltage
50V

Lifetime @ Temp
2000 Hrs @ 105°C

Leakage Current
5?A

Ripple Current
51mA

Polarization
Polar

Life (Hours)
2000 hours

Tan Delta
0.09

Impedance
7Ohm

Ripple Current @ Low Frequency
51mA @ 100Hz

Ripple Current @ High Frequency
71.4mA @ 10kHz

Diameter
6.3mm

Height
12.7mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Vishay MAL213831109E3.

Datasheets:

vishaybccomponents-mal213818152e3-datasheets-2750.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

MAL213831109E3 Overview

A full charge has a ripple current of 71.4mA @ 10kHz volts.In order to fully utilize 14Ohm @ 100Hz, ESR (Equivalent Series Resistance) needs to be provided.In the lowest charge, the ripple current is 51mA @ 100Hz.A voltage of 50V DC operates this capacitor.Maintaining -40°C~105°C as the operating temperature will maximize efficiency.

MAL213831109E3 Features

the ripple current is 71.4mA @ 10kHz.
the ripple current is 51mA @ 100Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C

MAL213831109E3 Applications

There are a lot of Vishay BC Components
MAL213831109E3 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
