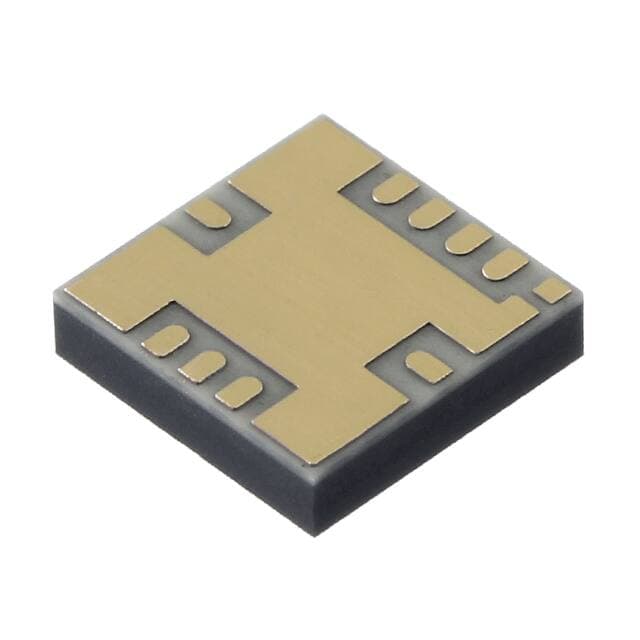

MA/COM MAAM-011109-TR1000

Manufacturer No:

MAAM-011109-TR1000

Manufacturer:

MA/COM

Package:

9-LLGA

Description:

13dB General Purpose WIDE BAND LOW POWER Tape & Reel (TR) 10MHz~40GHz ±5V P1dB:17dBm 3.5dB 190mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAAM-011109-TR1000 information

MA/COM MAAM-011109-TR1000 technical specifications, attributes, parameters and parts with similar specifications to MA/COM MAAM-011109-TR1000.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
9-LLGA

Number of Pins
9

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Terminal Finish
Gold (Au) - with Nickel (Ni) barrier

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
LOW NOISE

Voltage - Supply
±5V

Construction
COMPONENT

Frequency
10MHz~40GHz

Operating Supply Voltage
5V

Test Frequency
40GHz

Operating Supply Current
190mA

Gain
13dB

RF/Microwave Device Type
WIDE BAND LOW POWER

RF Type
General Purpose

Input Power-Max (CW)
17dBm

Characteristic Impedance
50Ohm

P1dB
17dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MA/COM MAAM-011109-TR1000.

Datasheets:

macomtechnologysolutions-maam011109tr1000-datasheets-0778.pdf

MAAM-011109-TR1000 Overview

A RF Amplifier that has a cost-effective WIDE BAND LOW POWER RF/Microwave Device Type.General Purpose RF Type from the RF Amplifier.Advanced RF Amp' packaging Tape & Reel (TR) is used to provide high reliability.Packed in 9-LLGA, the RF power Amplifier is convenient for shipping overseas.It is recommended to mount Amplifiers RF in the way of Surface Mount.The Amplifiers RF can supply ±5V voltage.Please take note of the following additional features of this RF Amp: LOW NOISETo deliver its performance, the supply current need to be operated at the range of 190mA.The high power RF Amplifier is designed with 9 pins.RF power Amplifier shouldrun at a temperature of 85°C more than 85°C degrees Celsius.

MAAM-011109-TR1000 Features

WIDE BAND LOW POWER RF/Microwave Amplifier
RF Type General Purpose
±5V voltage
9 pins

MAAM-011109-TR1000 Applications

There are a lot of M/A-Com Technology Solutions
MAAM-011109-TR1000 RF Amplifiers applications.

Location-Enabled Mobile Devices
Telematics (Asset Tracking and Management)
Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
