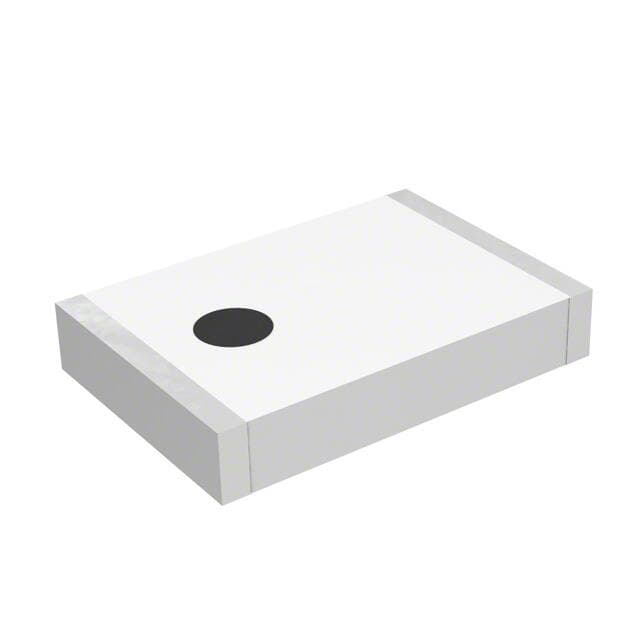

MA/COM MA4P7001F-1072T

Manufacturer No:

MA4P7001F-1072T

Manufacturer:

MA/COM

Package:

2-SMD

Description:

PIN - Single -55°C~175°C TJ 2 Terminations SILICON END Tape & Reel (TR) 2-SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA4P7001F-1072T information

MA/COM MA4P7001F-1072T technical specifications, attributes, parameters and parts with similar specifications to MA/COM MA4P7001F-1072T.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Package / Case
2-SMD

Number of Pins
2

Diode Element Material
SILICON

Operating Temperature
-55°C~175°C TJ

Packaging
Tape & Reel (TR)

Published
2008

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Additional Feature
LOW DISTORTION

HTS Code
8541.10.00.80

Subcategory
PIN Diodes

Technology
POSITIVE-INTRINSIC-NEGATIVE

Terminal Position
END

Terminal Form
WRAP AROUND

Pin Count
2

Number of Elements
1

Power Dissipation-Max
10W

Element Configuration
Single

Power Dissipation
15kW

Case Connection
ISOLATED

Application
ATTENUATOR; SWITCHING

Forward Voltage
1V

Reverse Voltage
100V

Reverse Voltage (DC)
100V

Frequency Band
HIGH FREQUENCY TO ULTRA HIGH FREQUENCY

Diode Capacitance-Nom
0.7pF

Resistance @ If, F
900mOhm @ 100mA 100MHz

Diode Capacitance-Max
0.7pF

Minority Carrier Lifetime-Nom
3 µs

Diode Res Test Current
100mA

Diode Res Test Frequency
100MHz

Diode Forward Resistance-Max
0.9Ohm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free
