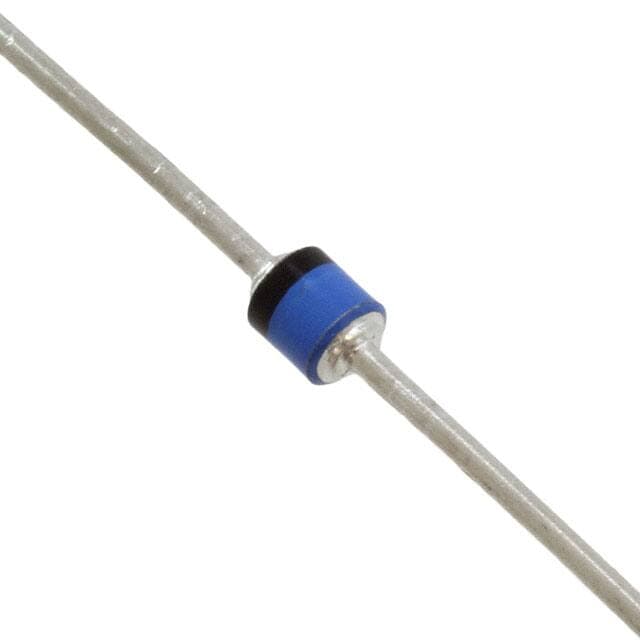

MA/COM MA4P1200NM-401T

Manufacturer No:

MA4P1200NM-401T

Manufacturer:

MA/COM

Package:

Axial

Description:

PIN - Single 1.5pF @ 50V 1MHz -55°C~175°C TJ 2 Terminations SILICON Tape & Reel (TR) Axial

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA4P1200NM-401T information

MA/COM MA4P1200NM-401T technical specifications, attributes, parameters and parts with similar specifications to MA/COM MA4P1200NM-401T.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Through Hole

Package / Case
Axial

Number of Pins
401

Diode Element Material
SILICON

Operating Temperature
-55°C~175°C TJ

Packaging
Tape & Reel (TR)

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Additional Feature
LOW DISTORTION

HTS Code
8541.10.00.80

Subcategory
PIN Diodes

Technology
POSITIVE-INTRINSIC-NEGATIVE

Terminal Form
WIRE

Pin Count
2

JESD-30 Code
O-CALF-W2

Number of Elements
1

Power Dissipation-Max
1.5W

Element Configuration
Single

Diode Type
PIN - Single

Case Connection
ISOLATED

Forward Current
50mA

Application
ATTENUATOR; SWITCHING

Forward Voltage
850mV

Capacitance @ Vr, F
1.5pF @ 50V 1MHz

Reverse Voltage
100V

Reverse Voltage (DC)
100V

Frequency Band
HIGH FREQUENCY TO ULTRA HIGH FREQUENCY

Diode Capacitance-Nom
1.2pF

Resistance @ If, F
750mOhm @ 50mA 100MHz

Diode Capacitance-Max
1.2pF

Minority Carrier Lifetime-Nom
0.008 µs

Diode Res Test Frequency
100MHz

Diode Forward Resistance-Max
0.75Ohm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MA/COM MA4P1200NM-401T.

Datasheets:

macomtechnologysolutions-ma4p1200nm401t-datasheets-3698.pdf

MA4P1200NM-401T Overview

Maintaining the forward voltage of a system above 850mV is recommended.

MA4P1200NM-401T Features

MA4P1200NM-401T Applications

There are a lot of M/A-Com Technology Solutions
MA4P1200NM-401T applications of RF diodes.

Diode ring mixer
RF detector
RF voltage doubler
Wearables
Smart metering
Set top boxes
RF attenuators and switches
Low-loss, high-power limiters
Receiver protectors
UHF mixer

User Guide
