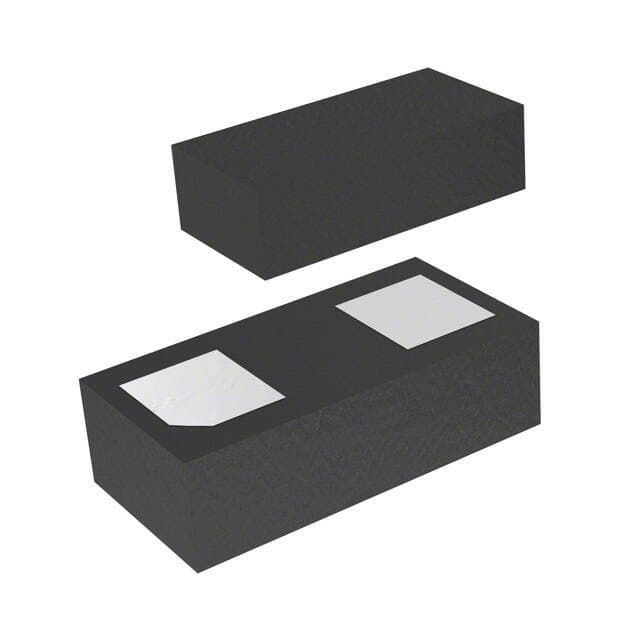

MA/COM MA4E1317

Manufacturer No:

MA4E1317

Manufacturer:

MA/COM

Package:

2-SMD

Description:

Schottky - Single 0.06pF @ 0V 1MHz -65°C~125°C TJ 2 Terminations GALLIUM ARSENIDE NOT APPLICABLE BOTTOM Bulk 2-SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA4E1317 information

MA/COM MA4E1317 technical specifications, attributes, parameters and parts with similar specifications to MA/COM MA4E1317.

Type
Parameter

Factory Lead Time
10 Weeks

Package / Case
2-SMD

Surface Mount
YES

Diode Element Material
GALLIUM ARSENIDE

Operating Temperature
-65°C~125°C TJ

Packaging
Bulk

Published
2007

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Additional Feature
STATIC SENSITIVE

HTS Code
8541.10.00.60

Subcategory
Microwave Mixer Diodes

Terminal Position
BOTTOM

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Time@Peak Reflow Temperature-Max (s)
NOT APPLICABLE

Pin Count
2

JESD-30 Code
R-XBCC-N2

Qualification Status
Not Qualified

Number of Elements
1

Element Configuration
Single

Forward Current
1mA

Forward Voltage
700mV

Peak Reverse Current
10?A

Max Repetitive Reverse Voltage (Vrrm)
7V

Capacitance @ Vr, F
0.06pF @ 0V 1MHz

Frequency Band
MILLIMETER WAVE B

Diode Capacitance-Max
0.06pF

Pulsed Input Power-Max
0.1W

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MA/COM MA4E1317.

Datasheets:

macomtechnologysolutions-ma4e1317-datasheets-3991.pdf

macom-ma4e1317-datasheets-5270.pdf

MA4E1317 Overview

The forward voltage should be kept above 700mV V.

MA4E1317 Features

MA4E1317 Applications

There are a lot of M/A-Com Technology Solutions
MA4E1317 applications of RF diodes.

RF voltage doubler
Wearables
Smart metering
Set top boxes
RF attenuators and switches
Low-loss, high-power limiters
Receiver protectors
UHF mixer
Sampling circuits
Modulators
