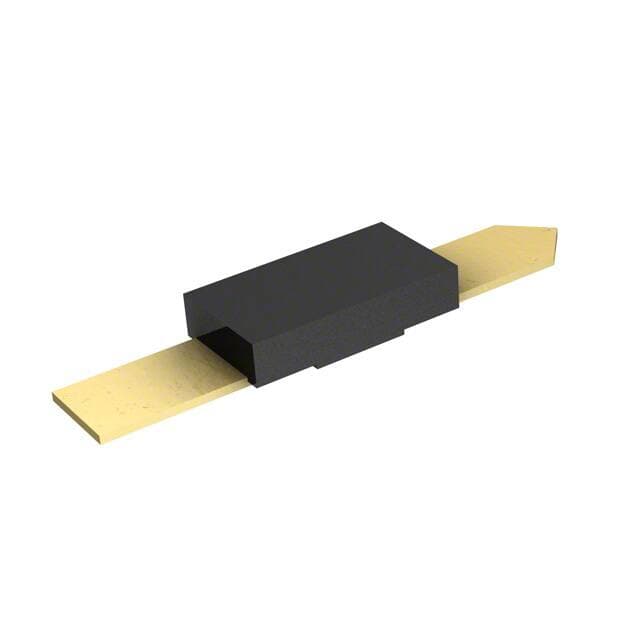

MA/COM MA4AGBLP912

Manufacturer No:

MA4AGBLP912

Manufacturer:

MA/COM

Package:

Description:

PIN - Single 0.03pF @ 5V 1MHz -65°C~125°C TJ 2 Terminations SILICON NOT SPECIFIED DUAL Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA4AGBLP912 information

MA/COM MA4AGBLP912 technical specifications, attributes, parameters and parts with similar specifications to MA/COM MA4AGBLP912.

Type
Parameter

Factory Lead Time
12 Weeks

Surface Mount
YES

Diode Element Material
SILICON

Operating Temperature
-65°C~125°C TJ

Packaging
Bulk

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Type
Switch

HTS Code
8541.10.00.80

Subcategory
PIN Diodes

Technology
NEGATIVE-INTRINSIC-POSITIVE

Terminal Position
DUAL

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
2

JESD-30 Code
R-XDMW-F2

Qualification Status
Not Qualified

Number of Elements
1

Max Current Rating
40mA

Capacitance @ Vr, F
0.03pF @ 5V 1MHz

Voltage - Peak Reverse (Max)
50V

Breakdown Voltage-Min
50V

Reverse Test Voltage
5V

Frequency Band
X B

Diode Capacitance-Nom
0.02pF

Resistance @ If, F
4.9Ohm @ 20mA 1GHz

Diode Capacitance-Max
0.03pF

Minority Carrier Lifetime-Nom
0.005 µs

Diode Res Test Current
20mA

Diode Res Test Frequency
10000MHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MA/COM MA4AGBLP912.

Datasheets:

macomtechnologysolutions-ma4agblp912-datasheets-5232.pdf

MA4AGBLP912 Overview

Device specifications specify a maximum reverse voltage of 50V for this device.RF diode is possible that this device may occasionally operate at RF diodes lowest breakdown voltage of 50V.RF diode is necessary to have a reverse test voltage wRF diodehin 5V in order to obtain a valid conversion result.

MA4AGBLP912 Features

at its lowest breakdown voltage of 50V

MA4AGBLP912 Applications

There are a lot of M/A-Com Technology Solutions
MA4AGBLP912 applications of RF diodes.

Ultra high-speed switching
Clamping circuits
Diode ring mixer
RF detector
RF voltage doubler
Wearables
Smart metering
Set top boxes
RF attenuators and switches
Low-loss, high-power limiters
