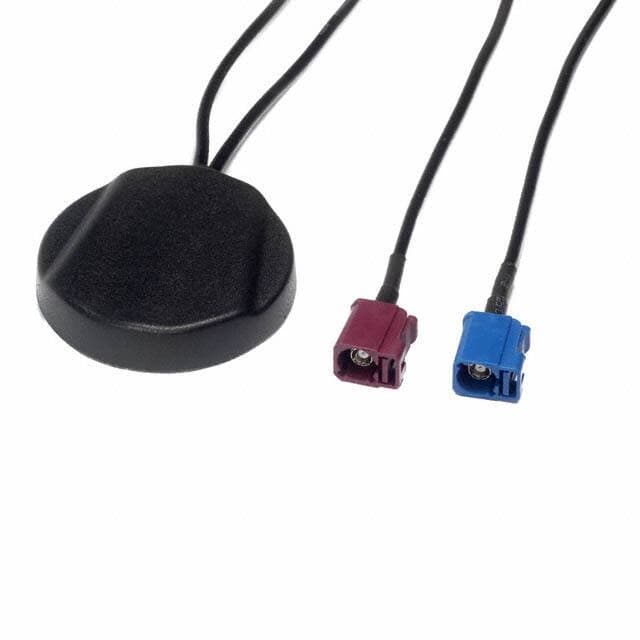

Taoglas Limited MA203.A.AB.045

Manufacturer No:

MA203.A.AB.045

Manufacturer:

Taoglas Limited

Package:

Description:

1 Bands Module UHF 1GHz~2GHz Adhesive SMA Male 1.575GHz 4dBic Bulk 0.425 10.80mm CDMA, GPS, GSM, UMTS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA203.A.AB.045 information

Taoglas Limited MA203.A.AB.045 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited MA203.A.AB.045.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Series
Stingray

Feature
LNA

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
CDMA, GPS, GSM, UMTS

Ingress Protection
IP67

Impedance
50Ohm

Gain
4dBic

Max Frequency
2.17GHz

RF Family/Standard
Cellular, Navigation

Antenna Type
Module

VSWR
2

Number of Bands
1

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.575GHz

Return Loss
-15dB

Height
10.795mm

Height (Max)
0.425 10.80mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited MA203.A.AB.045.

MA203.A.AB.045 Overview

A generalization of RF Antennas can be made using Adhesive.There are several Antenna RFs in the Stingray series.Packaging is solid wRF modulatorh a Bulk enclosure.The Adhesive makes it suitable for most RF ics.

MA203.A.AB.045 Features

With Adhesive
Stingray series

MA203.A.AB.045 Applications

There are a lot of Taoglas Limited
MA203.A.AB.045 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
