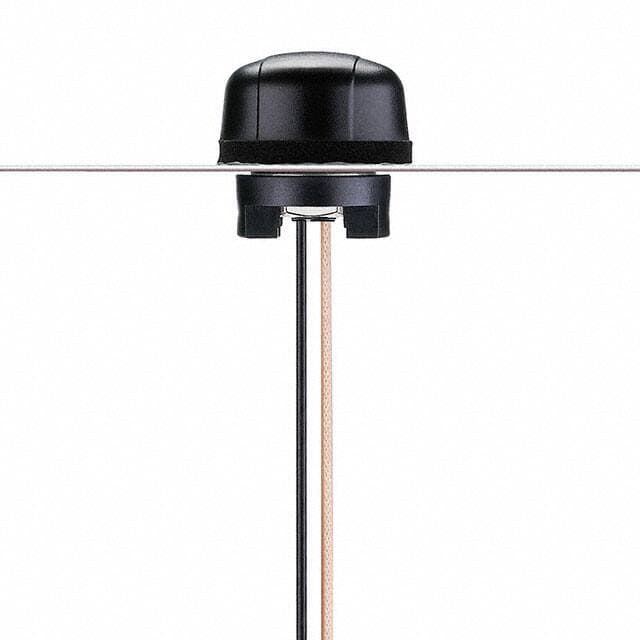

Taoglas Limited MA130.A.LP.002

Manufacturer No:

MA130.A.LP.002

Manufacturer:

Taoglas Limited

Package:

Description:

2 Bands Dome UHF 300MHz~1GHz UHF 1GHz~2GHz Panel Mount SMA Male 868MHz 1.575GHz 4.51dBi Bulk 1.122 28.50mm GLONASS, GPS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA130.A.LP.002 information

Taoglas Limited MA130.A.LP.002 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited MA130.A.LP.002.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Bulk

Series
Hercules

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
GLONASS, GPS

Max Power Dissipation
5W

Ingress Protection
IP69K

Impedance
50Ohm

Power - Max
5W

Gain
4.51dBi

Max Frequency
1.606GHz

Frequency Range
868MHz 1.574GHz~1.606GHz

RF Family/Standard
Navigation

Antenna Type
Dome

VSWR
2

Number of Bands
2

Frequency Group
UHF 300MHz~1GHz UHF 1GHz~2GHz

Frequency (Center/Band)
868MHz 1.575GHz

Return Loss
-10dB

Height
28.4988mm

RoHS Status
RoHS Compliant

Ratings
IP69K

Download datasheets and manufacturer documentation for Taoglas Limited MA130.A.LP.002.

MA130.A.LP.002 Overview

The Panel Mount makes it ideal for general RF Antennas.The Antenna RF is from the Hercules line.Packaged in solid enclosures, this RF modulator has a Bulk rating.Having a Panel makes it suitable for most RF ic designs.

MA130.A.LP.002 Features

With Panel Mount
Hercules series

MA130.A.LP.002 Applications

There are a lot of Taoglas Limited
MA130.A.LP.002 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo

User Guide
