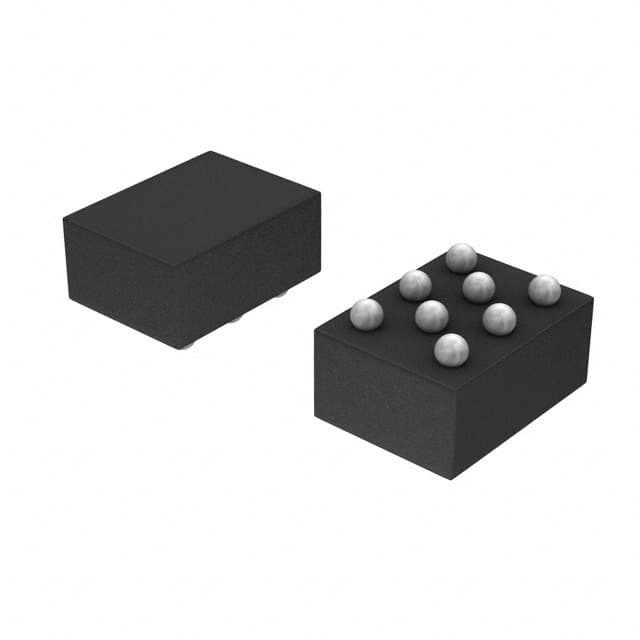

ST M95640-DFCT6TP/K

Manufacturer No:

M95640-DFCT6TP/K

Manufacturer:

Package:

8-XFBGA, WLCSP

Description:

Surface Mount 8 Pin Memory IC M95640 64 kb kb 1.073mm mm 5mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M95640-DFCT6TP/K information

ST M95640-DFCT6TP/K technical specifications, attributes, parameters and parts with similar specifications to ST M95640-DFCT6TP/K.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-XFBGA, WLCSP

Number of Pins
8

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Additional Feature
ALSO OPERATES 1.7 V SUPPLY AT 5MHZ

Technology
CMOS

Voltage - Supply
1.7V~5.5V

Terminal Position
BOTTOM

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.4mm

Base Part Number
M95640

Pin Count
8

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
4.5V

Interface
SPI, Serial

Nominal Supply Current
5mA

Memory Type
Non-Volatile

Clock Frequency
20MHz

Access Time
20 ns

Memory Format
EEPROM

Memory Interface
SPI

Memory Width
8

Write Cycle Time - Word, Page
5ms

Density
64 kb

Serial Bus Type
SPI

Write Cycle Time-Max (tWC)
5ms

Length
1.073mm

Height Seated (Max)
0.33mm

Width
0.959mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST M95640-DFCT6TP/K.

M95640-DFCT6TP/K Overview

As far as memory types are concerned, Non-Volatile is considered to be its memory type. In addition, memory ics is available in a Tape & Reel (TR) case as well. In the case of 8-XFBGA, WLCSP, it is embedded within the case. A memory chip with a capacity of 64Kb 8K x 8 is used on this device. There is a mainstream memory format used by this device, which is called EEPROM-format memory. This device has an extended operating temperature range of -40°C~85°C TA, so it's perfect for a wide range of demanding applications. It is capable of handling a voltage supply of 1.7V~5.5V. As far as the mounting type is concerned, Surface Mount is recommended. On the chip, there are 8 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 5V. In the memory, there is a clock frequency rotation that ranges 20MHz. In order to select similar parts, typical manufacturers refer to M95640 as the device's base part number. The memory device has an 8-pin package, which encloses it in a small package. I have noticed that the memory device has 8 pins, which indicates that it has 8 locations in the memory. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 5mA. The memory chip also offers ALSO OPERATES 1.7 V SUPPLY AT 5MHZ to level up system performance despite its merits. The SPI-type serial bus this memory integrates with is helpful for transferring data to the CPU.

M95640-DFCT6TP/K Features

Package / Case: 8-XFBGA, WLCSP
8 Pins
Additional Feature:ALSO OPERATES 1.7 V SUPPLY AT 5MHZ

M95640-DFCT6TP/K Applications

There are a lot of STMicroelectronics
M95640-DFCT6TP/K Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
