Manufacturer No:

M80-8670822

Manufacturer:

Harwin

Package:

Description:

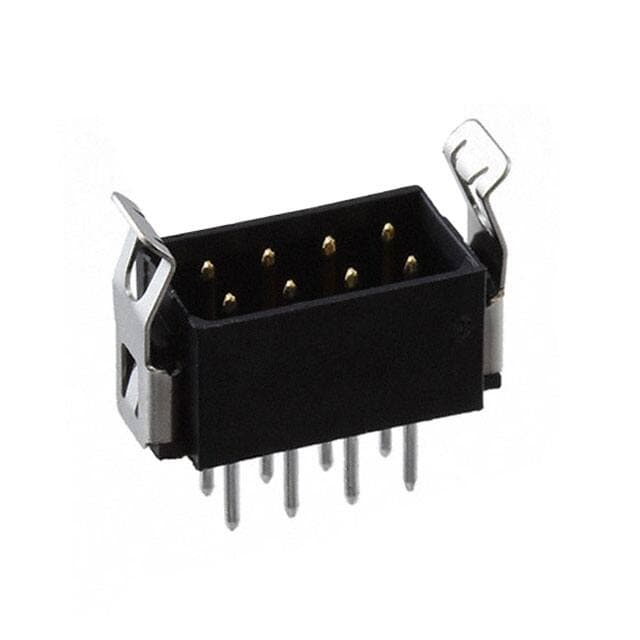

Datamate L-Tek Series 2-Row Header Solder Phosphor Bronze Tube Through Hole Gold Polyester, Glass Filled 8-Position Board to Board or Cable 0.219 5.56mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M80-8670822 information

Harwin M80-8670822 technical specifications, attributes, parameters and parts with similar specifications to Harwin M80-8670822.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Circular
  • Insulation Material
  • Polyester, Glass Filled
  • Housing Material
  • Polyester
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tube
  • Series
  • Datamate L-Tek
  • Published
  • 2005
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 8
  • Number of Rows
  • 2
  • Voltage - Rated
  • 800V
  • Additional Feature
  • LATCHED
  • Fastening Type
  • Latch Lock
  • Contact Finish - Mating
  • Gold
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 2.2A
  • Orientation
  • Straight
  • Depth
  • 5.98mm
  • Insulation Height
  • 0.219 5.56mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • not_compliant
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.079 2.00mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • Contact Finish - Post
  • Tin-Lead

Download datasheets and manufacturer documentation for Harwin M80-8670822.

Datasheets:

M80-8670822 Overview


The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the Datamate L-Tek Series.To name a few, there is also LATCHED.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
