Harwin M80-5110642
Harwin M80-5110642

Harwin M80-5110642

Manufacturer No:

M80-5110642

Manufacturer:

Harwin

Package:

Description:

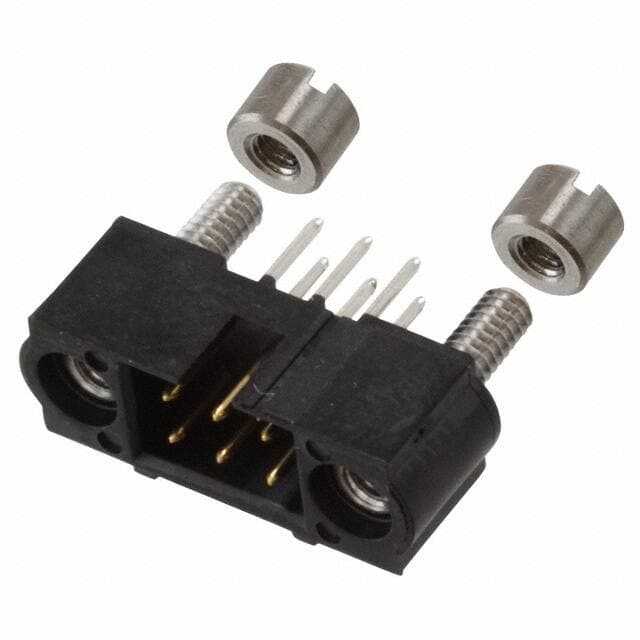

Datamate J-Tek Series 2-Row Header Solder Phosphor Bronze Tube Through Hole Gold Polyphenylene Sulfide (PPS), Glass Filled 6-Position Board to Board or Cable 0.220 5.60mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M80-5110642 information

Harwin M80-5110642 technical specifications, attributes, parameters and parts with similar specifications to Harwin M80-5110642.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Gold, Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Circular
  • Insulation Material
  • Polyphenylene Sulfide (PPS), Glass Filled
  • Housing Material
  • Polyphenylene
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tube
  • Series
  • Datamate J-Tek
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Feature
  • Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 6
  • Number of Rows
  • 2
  • Voltage - Rated
  • 800V
  • Additional Feature
  • PANEL MOUNTABLE
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 2.2A
  • Orientation
  • Straight
  • Depth
  • 6.05mm
  • Insulation Height
  • 0.220 5.60mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.173 4.40mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2

Download datasheets and manufacturer documentation for Harwin M80-5110642.

Datasheets:

M80-5110642 Overview


Header packaging is included.This device has a mounting type of Through Hole.We package the product with a Tube case.The product is part of the Datamate J-Tek Series.Additionally, there are features like PANEL MOUNTABLE, just to name a few.This feature makes it more powerful in a number of ways due to its Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware feature.You've got Through Hole mounted on the part.This device runs at -55°C~125°C operating temperature.
