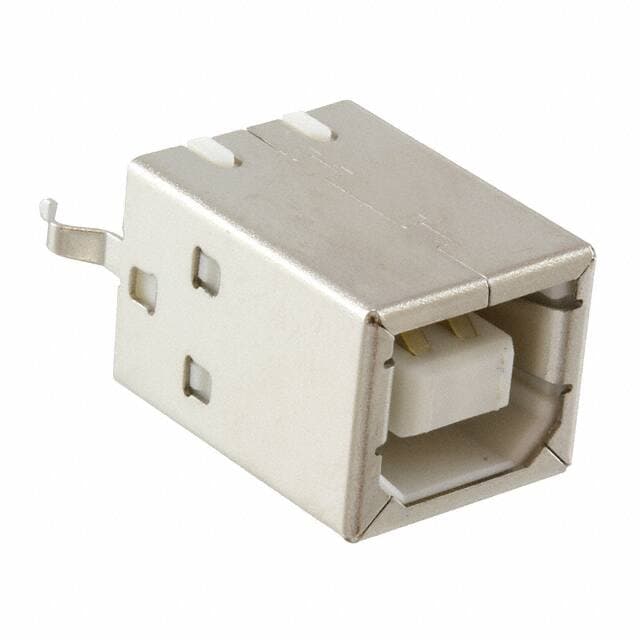

Harwin M701-330442

Manufacturer No:

M701-330442

Manufacturer:

Harwin

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M701-330442 information

Harwin M701-330442 technical specifications, attributes, parameters and parts with similar specifications to Harwin M701-330442.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Bronze

Mount
Through Hole, Vertical

Mounting Type
Through Hole

Mounting Feature
Vertical

Shell Material
GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Housing Material
PBT

Operating Temperature
-55°C~85°C

Packaging
Bulk

Published
2006

JESD-609 Code
e3

Feature
Board Lock

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
USB-B (USB TYPE-B)

Gender
Receptacle

Voltage - Rated
30VAC/DC

Additional Feature
ROHS COMPLIANT

Subcategory
Telecom and Datacom Connectors

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
2.5mm

Shielding
Unshielded

Depth
11.15mm

Current Rating
1.5A

Insulation Color
White

Number of Conductors
ONE

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
2

Number of Contacts
4

PCB Contact Pattern
RECTANGULAR

Empty Shell
NO

Contact Style
USB, SER B SQ

Contact Resistance
30mOhm

Insulation Resistance
1GOhm

Body/Shell Style
PLUG

Polarization Key
POLARIZED HOUSING

Dielectric Withstanding Voltage
500VAC V

Number of Ports
1

Download datasheets and manufacturer documentation for Harwin M701-330442.

Datasheets:

harwininc-m701330442-datasheets-9355.pdf

harwin-m701330442-datasheets-2856.pdf

harwin-m701330442-datasheets-2857.pdf

The Harwin M701-330442 USB Connector is a reliable and durable USB Type B receptacle designed for through hole mounting in vertical applications. This connector features 4 positions and is designed to provide a secure connection for USB cables. It is made from high-quality materials and is designed to withstand harsh environments. The connector is also RoHS compliant and is UL approved. This connector is ideal for applications such as industrial automation, medical equipment, and consumer electronics. It is easy to install and provides a reliable connection for USB cables.
